BCS-MCAM02(Ajax)

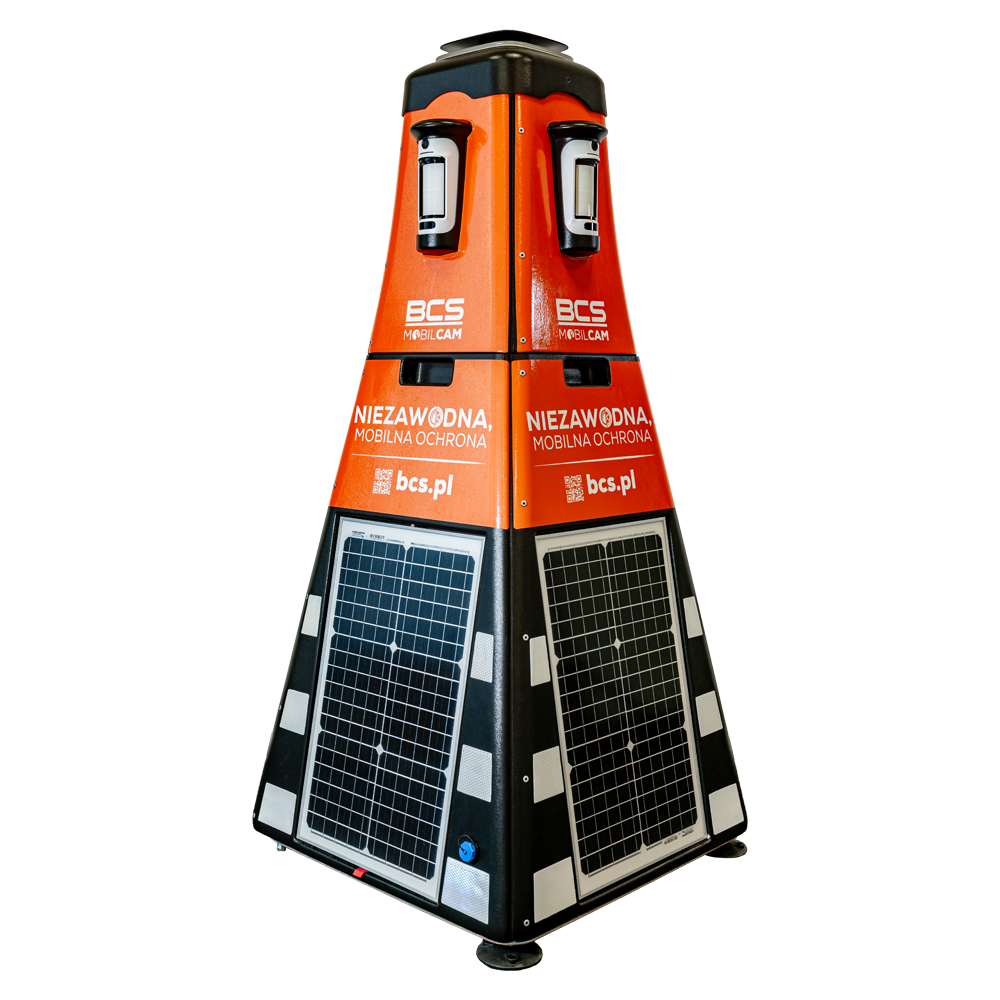

Mini Tower is a stand-alone alarm post designed to protect building sites, car parks, warehouses, temporary facilities and outdoor events – to name but a few. The system is based on an alarm control panel and four detectors fitted with cameras, which detect intruders and enable immediate visual verification of the alarm – even at night. The BCS-MCAM02 (Ajax) system offers LAN, Wi-Fi and LTE Dual SIM connectivity. In the event of an alarm, a siren with a sound level of up to 105 dB is triggered, along with a notification featuring footage of the incident. The Mini Tower features a fully wireless architecture and an autonomous power supply based on a 33Ah gel battery and a 30W solar panel utilising Victron components, enabling it to operate without a constant power source. It is ideal for mobile security, fleet monitoring and securing equipment operating in the field. Fitted with a Pulson LE-910 transmitter, it enables GPS monitoring and telemetry, allowing for real-time position tracking and data transmission to the monitoring centre. The kit includes a customised wrap featuring the client’s logos, allowing the Mini Tower to be fully tailored to the company’s branding and ensuring professional brand visibility within the protected area. A post charger is available as an optional extra, enabling convenient and rapid charging of the system during servicing or installation.

Control panel:

• Up to 100 Ajax wireless devices

• Specifically, up to 10 sirens or keypads with built-in sirens and 5 range extenders.
• IP cameras or DVRs: up to 25
• Seamless integration with IP cameras and DVRs from Dahua, Hikvision, Safire, EZVIZ and Uniview
• RTSP support.
• Up to 50 users
• Wireless communication: Jeweller communication technology
• Two-way communication
• Advanced anti-tampering
• Block cipher with dynamic key
• Instant notifications
• Remote configuration via the Ajax app
• GFSK radio signal modulation
• Radio signal range up to 2,000 m
• Between the hub and connected devices (in open space).
• The maximum range depends on the connected device.
• Encrypted communication Frequency hopping
• The device’s operating voltage is
• 110–240 V
• Ethernet 1 × 8P8C socket up to 100 Mb/s
• GSM: 2 micro-SIM card slots
• Mobile frequencies: 2G GSM900/DCS1800 (B3/B8), 3G WCDMA 850/900/2100 (B1/B5/B8), 4G (LTE)
• Automatic switching between communication channels
• Communication channel priority: 1. Ethernet 2. Mobile connectivity
• Supported notification types: Push notifications, SMS, voice calls
• Photographic verification Alarm photos Scenario-based photos On-demand photos Scheduled photos Photo resolution up to 640 × 480 pixels
• Number of photos per series: 1 to 5 photos
• Supported protocols: SIA (DC-09), SurGard (Contact ID), ADEMCO 685
• Other proprietary protocols
• Mains power supply: 110–240 V~, 50/60 Hz
• Built-in 3 Ah Li-ion battery
• Up to 15 hours of operation in offline mode, with the Ethernet connection disconnected. The Battery Saver function allows you to extend the backup battery life.
• Tamper alarm
• Dimensions 163 × 163 × 36 mm
• Weight: 362 g
• Operating temperature range: −10°C to +40°C
• Operating humidity: up to 75%
• IP20 protection rating

Detectors

• Jeweller communication technology
• Two-way communication.
• Advanced anti-tamper protection.
• Block encryption with a dynamic key.
• Instant notifications.
• Remote configuration via the Ajax app.
• Maximum effective radiated power (ERP) up to 20 mW
• Radio signal range up to 1,700 m between the sensor and the control panel or range extender in open space.
• Encrypted communication Wings communication technology
• Two-way communication.
• Block cipher with a dynamic key.
• Advanced anti-tamper protection.
• Data packet re-transmission in the event of transmission errors.
• Photo delivery verification.
• Radio signal range up to 1,700 m between the sensor and the control panel or range extender in open space.
• Detection
• 2 × PIR sensors
• Motion detection range: 3 to 15 metres
• When installed at a height of 0.8–1.3 m. Adjustable via the adjustment strap on the device housing.
• Motion detection angles
• horizontally — 90°
• vertically — N/A
• Detected movement speed: 0.3 to 2.0 m/s
• Sensitivity: 3 levels
• Pet immunity
• Weight: any
• Height: up to 80 cm
• Temperature compensation Effective motion detection at temperatures ranging from −25°C to +60°C.
• Photographic verification
• Photo resolution: 640 × 352 pixels, 320 × 176 pixels (default)
• This setting can be adjusted via PRO or by a user with administrator rights in the Ajax app.
• Camera viewing angles: horizontal — 105°, vertical — 50°
• IR illumination
• For night-time and low-light photography.
• Photo burst
• from 1 to 5 photos with a resolution of 320 × 176 pixels
• 1 to 3 photos with a resolution of 640 × 352 pixels
• When the hub is connected via Ethernet or 4G, and the Wings signal strength between the hub and the device is 2–3 bars
• It is recommended that the sensor be mounted at a height of 0.8–1.3 m.
• Tamper protection
• Anti-masking system
• 4 × CR123A batteries. Fitted at the factory.
• Expected battery life: up to 3 years
• Entry delay function disabled
• Operating voltage range 4–6.4 V⎓
• Nominal operating voltage: 6 V⎓
• Standby current at rated voltage: 50 μA
• Maximum current draw at rated voltage: 1 A
• Full battery capacity 3200 mAh
• Battery capacity at end of life: 3,080 mAh
• Dimensions 206 × 108 × 93 mm
• Weight: 470 g
• Permissible operating temperature: −25°C to +60°C
• Permissible humidity: up to 95%
• IP56 protection rating
