BCS-L-THOME02

BCS LINE

Reference 13033

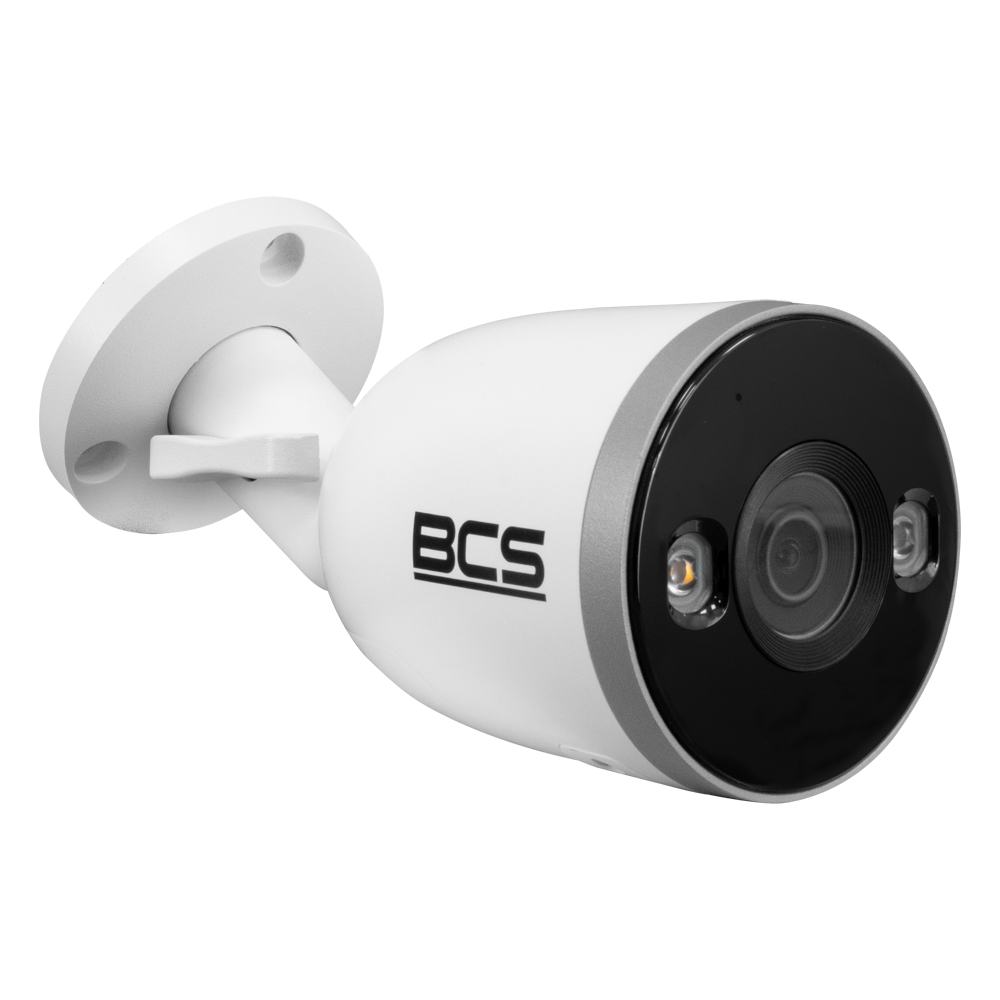

5 Mpx external camera
Wi-Fi 6
Microphone
AI features with person/vehicle recognition
Alarm notifications
Colour imaging 24 hours a day using LEDs
Dual LED and IR illuminator (30m)
IP67-rated housing

Availability Product in stock

Price visibility

159 PLN tax excl.

Ask about product

Download PDF

Polityka bezpieczeństwa

(edytuj w module Customer Reassurance)

Zasady dostawy

(edytuj w module Customer Reassurance)

Zasady zwrotu

(edytuj w module Customer Reassurance)

Product Details

Reference 13033

GTIN13/EAN13 5904890717077

In stock 10 Items

Data sheet

Product: BCS-L-THOME02
Product line: BCS LINE
Camera type: HOME
Resolution: 5 Mpx
Sensor: 1/2.7'' CMOS
Pixels: 2880(H)×1620(V)
Lens: fixed
Focal length: 2.8 mm
Aperture: F 1.6
Focus: fixed
Iris: fixed
Angle of view: H: 104° V: 56° D: 124°
White balance: Auto
WDR: DWDR
Image rotate: Flip 180°
Stream support: 2
Resolutions: 5M(2880×1620) / 640×360
Main stream: 2880×1620@1~25/30fps
Second stream: 640×360@1~25/30fps
Bitrate: H.264: 32~4096kbps H.265: 32~4096kbps
Video compression: H.264B / H.264 / H.264H / H.265
Day/night: ICR mechanical infrared filter
Illuminator type: IR LED + WhiteLight
IR range: 30m
WhiteLight range: 30m
Microphone: Yes
Audio compression: PCM / G.711a / G.711Mu
Memory card slot: microSD 256GB
Support: Mobile App(iOS, android)
Motion detect: Yes
Network: RJ-45 10/100 Mbps
Wi-Fi: 802.11b/g/n/ax 2.4GHz
Compatibility: ONVIF(S/G/T)
Power supply type: 12V DC
Power consumption: max 4W
Housing color: White
IP class: IP67
Working environment: -40°C~+60°C max 95% RH
Dimensions: Ø76.8×158.3mm
Weight: 0.3 kg
Box dimensions in mm (W×D×H): 240×115×111
Ai - Built-in intelligent functions: Human and motor vehicle detection reduces false alarms
Accessories included: power supply
