- Compact 2Mpx IP camera
- 1/2.9" PS CMOS sensor
- SkyLight technology
- NDAA compliance
- C/CS lens
- WDR 120dB
- Alarm 2/1, audio 1/1
- Built-in smart features
Polityka bezpieczeństwa
(edytuj w module Customer Reassurance)
Zasady dostawy
(edytuj w module Customer Reassurance)
Zasady zwrotu
(edytuj w module Customer Reassurance)
Description

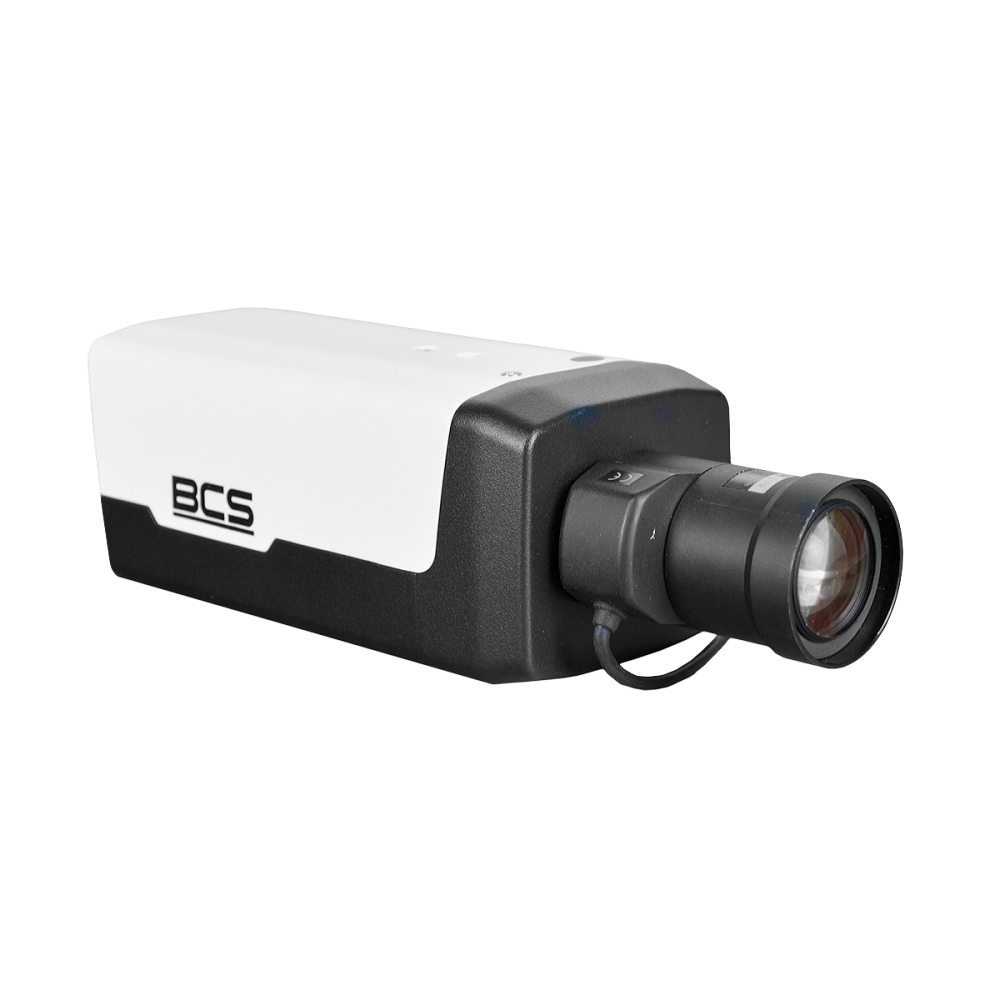

2Mpx compact IP camera, 1/2.9" PS CMOS sensor with variable lens, H.265 + / H.264 + / MJPEG, corridor functions, AWB, AGC, BLC, HLC, ROI, Defog, WDR (120dB), motion detection , privacy masks, intelligent functions: line crossing, intrusion into area, defocus detection, scene change, face detection, people counting, audio detection, C / CS lens support, Auto Iris, 1 audio input and 1 audio output, 2 inputs and 1 alarm output, support for microSD cards up to 128GB, RS485 and BNC video output, white housing, surge protection up to 6KV, power supply: DC12V, AC24V and PoE. Dimensions: Ø151.5 x 71 x 65mm.
Product Details
7777
Data sheet
- Product
- BCS-P-102WSA-II
- Product line
- BCS POINT
- Camera type
- Compact
- Resolution
- 2 Mpx
- Sensor
- 1/2.9'' CMOS
- Scanning system
- Progressive Scan
- Pixels
- 1920(H)×1080(V)
- Lens
- C/CS
- Digital zoom
- 16×
- Min illumination
- 0.001Lux(F1.2,AGC) 0.0001Lux(F1.2,AGC)
- S/N ratio
- 52dB
- White balance
- (AWB) Auto / manual
- WDR
- 120dB
- Backlight compensation
- BLC / HLC / WDR(120dB)
- Shutter
- Auto / manual 1/6~1/100000s
- Gain control
- (AGC) Auto / manual
- Noise reduction
- 2D/3D DNR
- Image rotate
- Mirror, flip 180°
- Stream support
- 3
- Resolutions
- 2M(1920×1080) / 720P(1280×720) / D1(704×576) / (640×360) / 2CIF(704×288) / CIF(352×288)
- Main stream
- 1920×1080@30fps 1280×720@30fps
- Second stream
- 1280×720@30fps 704×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps
- Third stream
- 704×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps
- Video compression
- H.265 / H.265+ / H.264 / H.264+ / MJPEG
- Day/night
- ICR
- Audio in
- 1
- Audio out
- 1
- Audio compression
- G.711A / G.711U
- Alarm in
- 2
- Alarm out
- 1
- Memory card slot
- microSD 128GB
- Other interfaces
- RS485, BNC
- Support
- Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
- Motion detect
- 4
- Privacy masking
- 4
- Network
- RJ-45 10/100/1000 Mbps SFP 1Gbps
- Compatibility
- ONVIF
- Protocols
- IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
- Power supply type
- 12V DC / 24V AC / PoE(802.3af)
- Power consumption
- max 6.8W
- Housing color
- White
- Working environment
- -20°C~+60°C max 95% RH
- Dimensions
- Ø151.5×71×65mm
- Weight
- 0.48 kg
- Ai - Built-in intelligent functions
- Yes
- Ai - Perimeter protection
- Yes
- Ai - Human/vehicle detection
- Yes
- Ai - Face detection
- Yes
- Ai - People counting
- Yes
