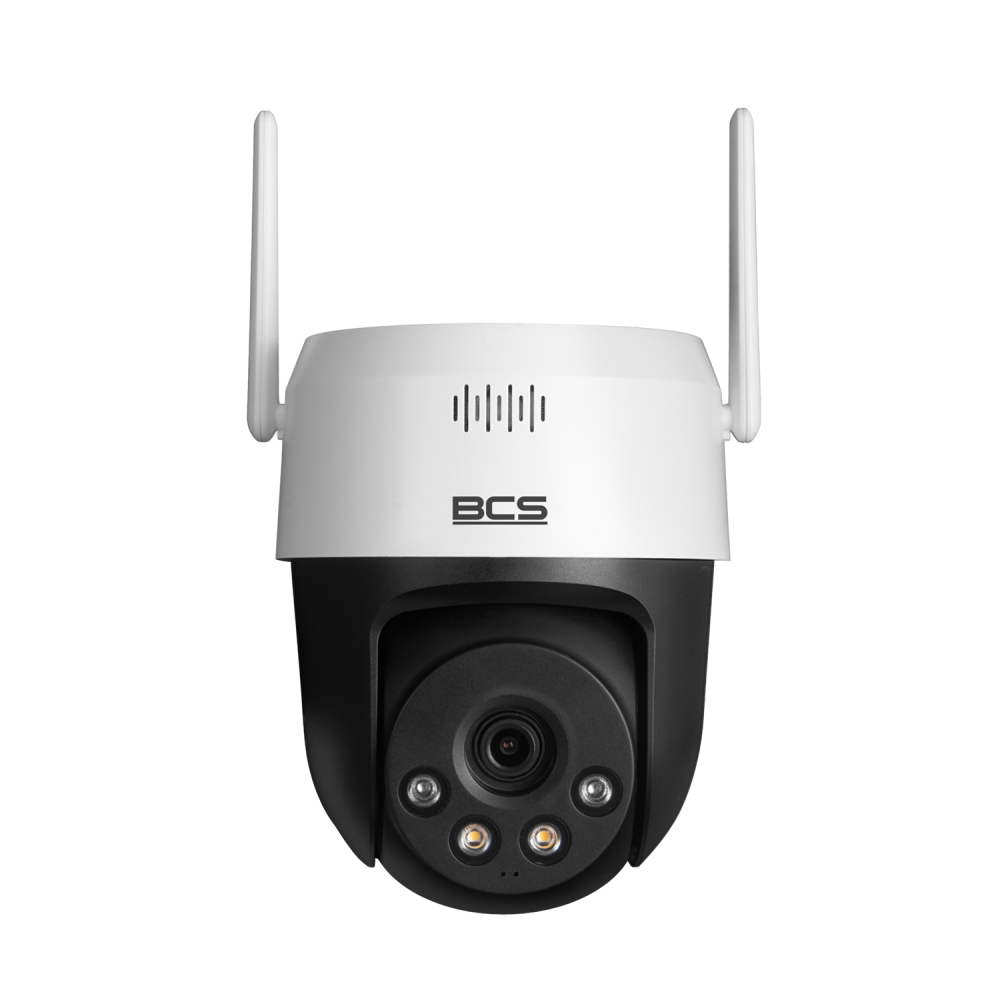

  • 5 Mpx rotating outdoor Wi-Fi camera
  • Microphone / Speaker
  • Remote access and control
  • Active deterrence and tracking features
  • AI features with object recognition (people/cars)
  • Alarm notifications
  • 24-hour colour imaging using LEDs
  • Dual LED and IR illuminator (30m)
  • IP66-rated housing
help_outline Ask about product
BCS-L-PTHOME04

BCS-L-PTHOME04



Download PDF
verified_user

Technical Support Card

Verify official warranty, security status and download latest firmware for this model.

Check Support arrow_forward
  Polityka bezpieczeństwa

(edytuj w module Customer Reassurance)

  Zasady dostawy

(edytuj w module Customer Reassurance)

  Zasady zwrotu

(edytuj w module Customer Reassurance)

Product Details
12335
5904890713369

Data sheet

Product
BCS-L-PTHOME04
Product line
BCS LINE
Camera type
HOME
Resolution
5 Mpx
Sensor
1/2.8'' CMOS
Pixels
2560(H)×1920(V)
Lens
fixed
Focal length
4 mm
Aperture
F 1.6
Focus
fixed
Iris
fixed
Angle of view
H: 80.4° V: 58.1° D: 104.8°
White balance
Auto
WDR
DWDR
Shutter
Auto / manual 1~1/100000s
Image rotate
Flip 180°
Stream support
2
Resolutions
5M(2560×1920) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(704×576)(704×480) / VGA(640×480) / CIF(352×288)(352×240)
Main stream
2560×1920@1~25/30fps 2560×1440@1~25/30fps 2304×1296@1~25/30fps 1920×1080@1~25/30fps 1280×720@1~25/30fps
Second stream
(704×576)(704×480)@1~25/30fps (640×480)@1~25/30fps (352×288)(352×240)@1~25/30fps
Bitrate
H.264: 104~8192kbps H.265: 41~8192kbps
Video compression
H.265 / H.265+ / H.264+ / H.264 / MJPEG
Day/night
ICR mechanical infrared filter
Illuminator type
IR LED + WhiteLight
IR range
30m
Microphone
Yes
Loudspeaker
Yes
Active deterrence function ADC
Sound-optical alarm
Warning lights
White Light
Audio compression
PCM / G.711a / G.711Mu / G.726
Storage
FTP
Memory card slot
microSD 256GB
Support
Web Service, Mobile App(iOS, android)
Motion detect
Yes
Network
RJ-45 10/100 Mbps
Wi-Fi
802.11b/g/n 2.4GHz
Power supply type
12V DC 1A
Housing color
White
IP class
IP66
Working environment
-30°C~+55°C max 95% RH
Dimensions
Ø111mm×140.5mm
Weight
1 kg
PAN range
0°~345°
TILT range
0°~80°
Auto tracking
Yes
Automatic functions
300 presets
Box dimensions in mm (W×D×H)
144×144×223
Ai - Built-in intelligent functions
Human and motor vehicle detection reduces false alarms
Ai - Perimeter protection
Crossline, intrusion
Ai - SMD - Smart Motion Detection
SMD 3.0
Accessories included
power supply
