BCS-V-DIP58VSR4-Ai2(2)
BCS VIEW
12171
ARCHIWUM

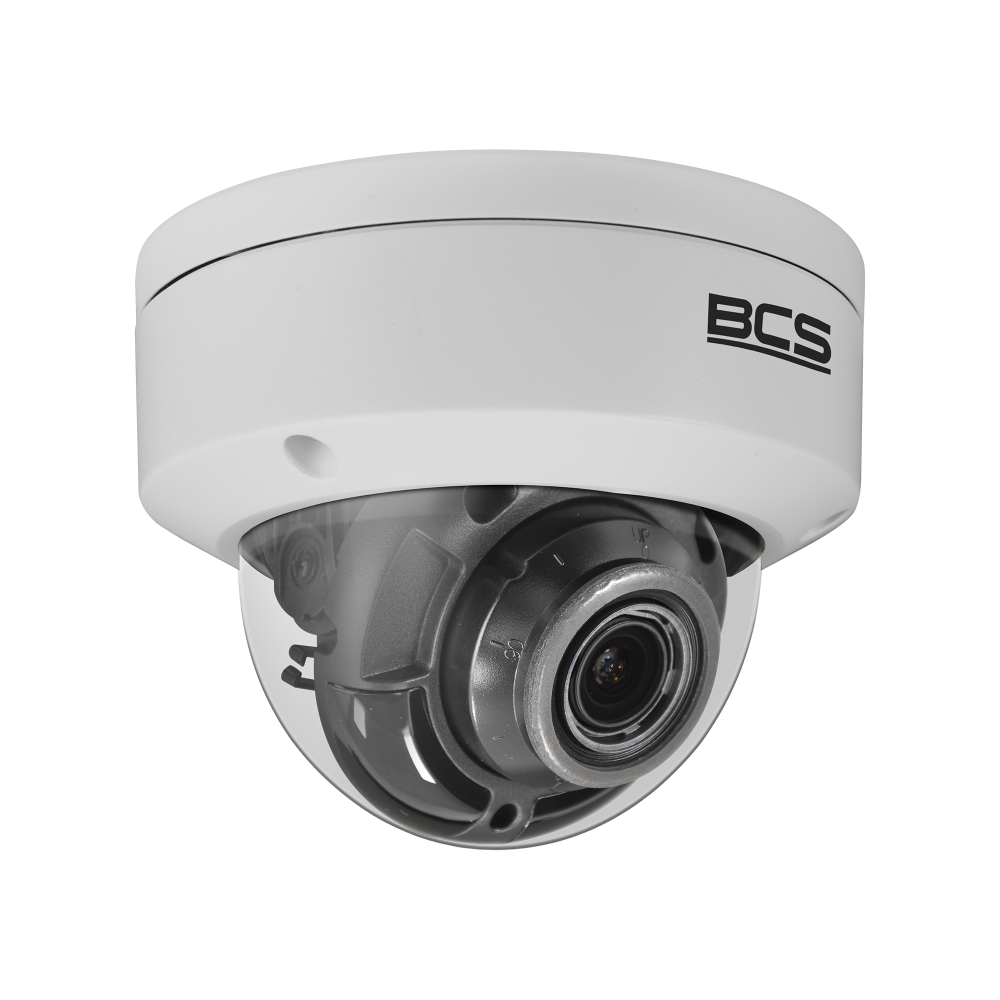

- 8Mpx dome IP camera
- 1/1.8" PS CMOS sensor
- SkyLight technology
- AcuSense technology
- 2.8–12 mm motorised zoom lens
- WDR 120dB
- IR 40m
- Alarm 1/1, audio 1/1
- IP67, IK10 housing
- Built-in smart features
- Dedicated mounting box included
Polityka bezpieczeństwa
(edytuj w module Customer Reassurance)
Zasady dostawy
(edytuj w module Customer Reassurance)
Zasady zwrotu
(edytuj w module Customer Reassurance)
Product Details
12171
5904890712812
Data sheet
- Product
- BCS-V-DIP58VSR4-Ai2(2)
- Product line
- BCS VIEW
- Camera type
- Dome
- Resolution
- 8 Mpx
- Sensor
- 1/1.8'' CMOS
- Scanning system
- Progressive Scan
- Pixels
- 3840(H)×2160(V)
- Lens
- motozoom
- Focal length
- 2.8~12 mm
- Aperture
- F 1.2
- Focus
- Auto / manual
- Iris
- fixed
- Optical zoom
- 4×
- Angle of view
- H: 112.3°~41.2° V: 58.1°~23.1° D: 137.4°~47.3°
- DORI
- Detect 87~216m / Observe 35~86m / Recognize 17~43m / Identify 9~22m
- Min illumination
- 0.0008Lux(F1.2, AGC) 0Lux(B/W,IR)
- S/N ratio
- 52dB
- White balance
- (AWB) Auto / manual
- WDR
- 120dB
- Backlight compensation
- BLC / HLC / WDR(120dB)
- Shutter
- Auto / manual 1/3~1/100000s
- Gain control
- (AGC) Auto / manual
- Noise reduction
- 3D DNR
- Image rotate
- Mirror
- Stream support
- 3
- Resolutions
- 8M(3840×2160) / 6M(3200×1800) / 4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / VGA(640×480) / 360P(640×360)
- Main stream
- 3840×2160@25fps 3200×1800@30fps 2688×1520@25fps 1920×1080@25fps 1280×720@25fps
- Second stream
- 1280×720@30fps 640×480@30fps 640×360@30fps
- Third stream
- 1920×1080@10fps 1280×720@10fps 640×480@10fps 640×360@10fps
- Bitrate
- 32Kbps~16Mbps
- Video compression
- H.265 / H.265+ / H.264 / H.264+ / MJPEG
- Day/night
- ICR
- Illuminator type
- IR LED
- IR range
- 40m
- Audio in
- 1
- Audio out
- 1
- Audio compression
- G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC
- Alarm in
- 1
- Alarm out
- 1
- Storage
- FTP, NAS(NFS)
- Memory card slot
- microSD 512GB
- Support
- Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
- Motion detect
- Yes
- Privacy masking
- 4
- Network
- RJ-45 10/100 Mbps
- Compatibility
- ONVIF(S/G/T)
- Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, SRTP, SFTP
- Network security
- HTTPS, SSL, TLS, IEEE802.1X, Digest authentication, IP adress filtering, host authentication (MAC address), CA Certificate, Login Auth/Account Lockout
- Power supply type
- 12V DC / PoE (802.3af)
- Power consumption
- max 15W
- Housing color
- White
- IP class
- IP67
- IK10
- Yes
- Working environment
- -30°C~+60°C max 95% RH
- Dimensions
- Ø141×112mm
- Weight
- 0.84 kg
- Ai - Built-in intelligent functions
- Built-in intelligent algorithm of image analisis
- Ai - Perimeter protection
- Crossline, intrusion
- Ai - Human/vehicle detection
- Human/vehicle classification for crossline and intrusion reduces false alarms
- Ai - Face detection
- Face detection and tracking, snapshot
- Accessories included
- dedicated mounting box with gland and mounting hole 3/4''
