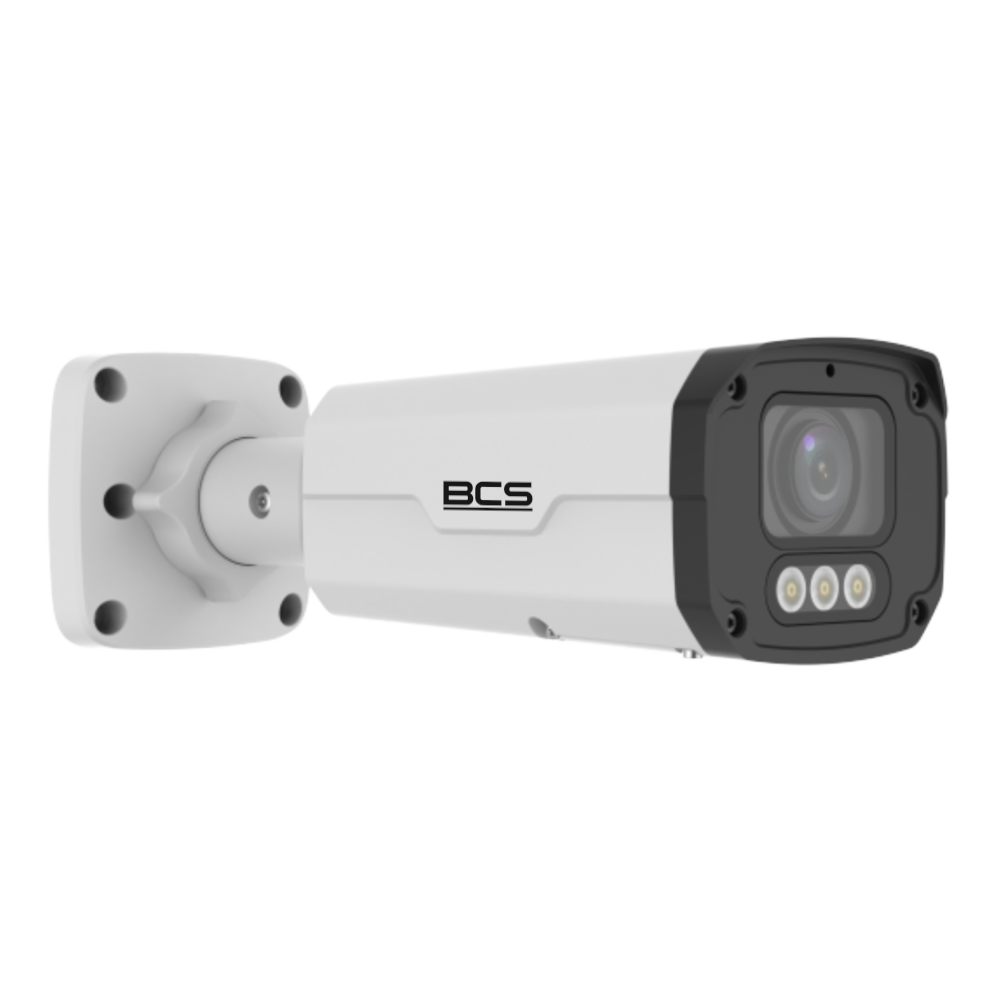

BCS-P-TIP56VSR6L6-Ai2

Data sheet

Product

BCS-P-TIP56VSR6L6-Ai2

Product line

BCS POINT

NDAA

National Defense Authorization Act

Camera type

Bullet

Resolution

6 Mpx

Sensor

1/2.5'' CMOS

Scanning system

Progressive Scan

Pixels

3288(H)×1860(V)

Lens

motozoom

Focal length

2.7~13.5 mm

Aperture

F1.2

Focus

Auto / manual

Iris

Auto

Optical zoom

5×

Angle of view

H: 110°~34.6° V: 58.6°~19.6° D: 132°~39.8°

DORI

Detect 60.8~303.8m / Observe 24.3~121.5m / Recognize 12.2~60.8m / Identify 6.1~30.4m

Min illumination

0.001Lux(F1.2,AGC) 0Lux(B/W,IR)

S/N ratio

52dB

White balance

(AWB) Auto / manual

WDR

120dB

Backlight compensation

BLC / HLC / WDR(120dB)

Shutter

Auto / manual 1~1/100000s

Gain control

(AGC) Auto / manual

Noise reduction

2D/3D DNR

RoI

Region of Interest

Defog

Digital

Image rotate

Mirror, Flip 0°/90°/180°/270°

Stream support

3

Resolutions

6M(3288×1860)(3200×1800) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288)

Main stream

3288×1860@25fps 3200×1800@25fps 2560×1440@30fps 2304×1296@30fps 1920×1080@30fps 1280×720@30fps

Second stream

1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps

Third stream

720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps

Bitrate

128Kbps~16Mbps

Video compression

H.265 / H.265+ / H.264 / MJPEG

Day/night

ICR

Illuminator type

IR LED + WhiteLight

IR range

60m

WhiteLight range

60m

Microphone

Yes

Audio in

1

Audio out

1

Audio compression

G.711A / G.711U / AAC

Alarm in

1

Alarm out

1

Storage

NAS(NFS)

Memory card slot

microSD 512GB

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

Yes

Privacy masking

4

Network

RJ-45 10/100Mbps

Compatibility

ONVIF(S/G/T/M)

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SSL/TLS, 802.1x, SNMP, QoS, HTTPS, SMTP, PPPoE

Network security

Password protection, Strong Password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, DTLS 1.4

Power supply type

12V DC / PoE(802.3af)

Power consumption

max 7W

Housing color

White

IP class

IP67

IK10

Yes

Surge protection

4kV

Working environment

-30°C~+60°C max 95% RH

Dimensions

245×85×86mm

Weight

0.94 kg

Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis

Ai - Perimeter protection

Crossline, intrusion

Ai - Human/vehicle detection

Recognition of people entering the area and crossing the line reduces false alarms.

Ai - People counting

People counting for intrusion and crossline, counting people in/out

Ai - SMD - Smart Motion Detection

Intelligent Ultra Motion Detection with human/vehicle recognition
