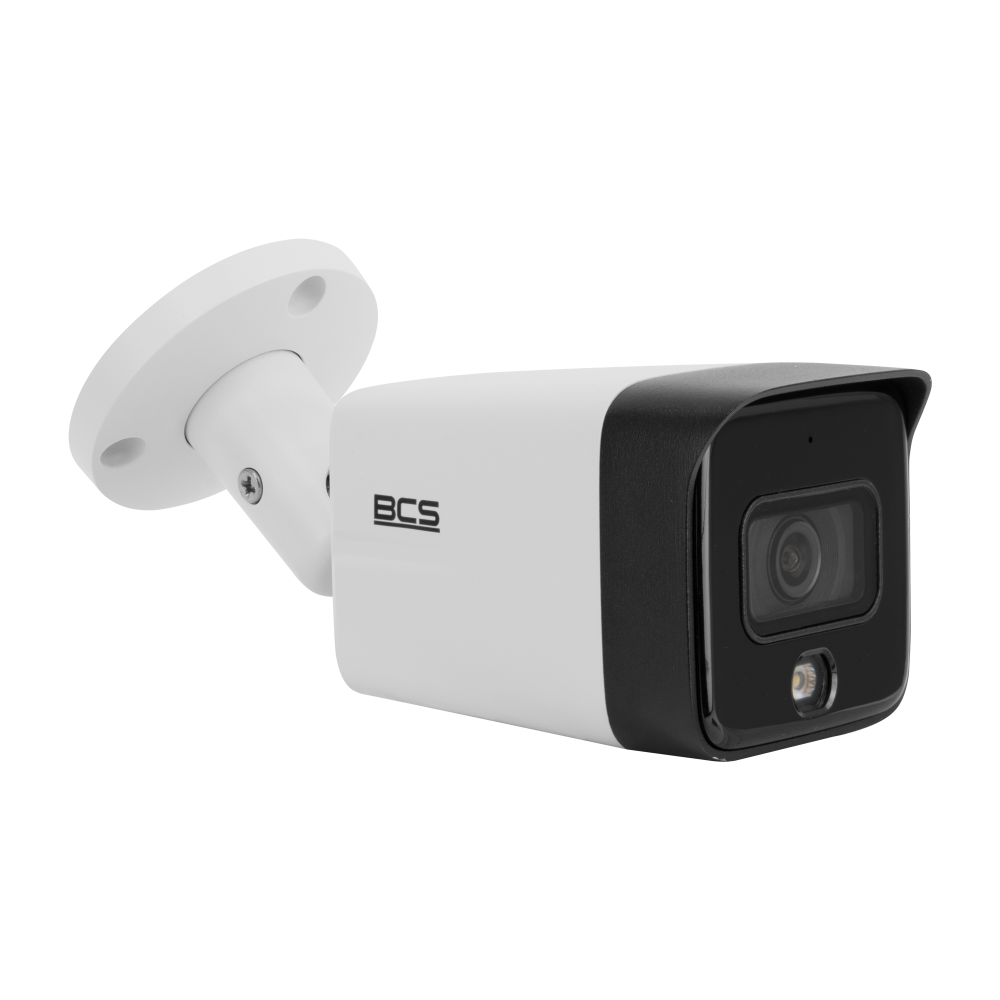

BCS-L-TIP16FSR3L3-Ai

BCS LINE

Reference 13517

6Mpx Bullet IP Camera
1/2.7" PS CMOS Sensor
NightColor Technology
2.8mm Fixed Lens
Microphone
30m IR Illuminator
30m Whitelight
IP67 Housing
Intelligent Motion Detection with Human Recognition

Availability In progress of delivery

Price visibility

825 PLN tax excl.

Ask about product

Download PDF

Polityka bezpieczeństwa

(edytuj w module Customer Reassurance)

Zasady dostawy

(edytuj w module Customer Reassurance)

Zasady zwrotu

(edytuj w module Customer Reassurance)

Product Details

Reference 13517

GTIN13/EAN13 5904890719170

Data sheet

Product: BCS-L-TIP16FSR3L3-Ai
Product line: BCS LINE
Camera type: Bullet
Resolution: 6 Mpx
Sensor: 1/2.7'' CMOS
Scanning system: Progressive Scan
Pixels: 3200(H)×1800(V)
RAM: 256MB
ROM: 128MB
Lens: fixed
Focal length: 2.8 mm
Aperture: F1.8
Focus: fixed
Iris: fixed
Angle of view: H: 110° V: 58° D: 132°
DORI: Detect 63.6m/ Observe 25.4m/ Recognize 12.7m/ Identify 6.4m
Min illumination: 0.007Lux(Color,F1.6,30IRE) 0.0007Lux(F1.6,B/W,30IRE) 0Lux(IR)
S/N ratio: 56dB
White balance: (AWB) Auto / manual
WDR: DWDR
Backlight compensation: BLC / HLC / DWDR
Shutter: Auto / manual 1/3~1/100000s
Gain control: (AGC) Auto / manual
Noise reduction: 3D DNR
RoI: Region of Interest
Image rotate: Mirror, Flip 0°/90°/180°/270°
Stream support: 2
Resolutions: 6M(3200×1800) 4M(2880×1620/2688×1520) 3M(2048×1536/2304×1296) 1080P(1920×1080) 1.3M(1280×960) 720P(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240)
Main stream: 3200×1800(1~20fps) 2688×1520(1~25/30fps)
Second stream: 704×576(1~25fps) 704×480(1~30fps)
Bitrate: H.264: 32 kbps~8192kbps H.265: 12 kbps~8192kbps
Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
Day/night: ICR mechanical infrared filter
Illuminator type: IR LED + WhiteLight
IR range: 30m
WhiteLight range: 30m
NightColor: Yes
Microphone: Yes
Audio compression: G.711A / G.711Mu / G.726 / PCM
Storage: FTP
Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Motion detect: 4
Privacy masking: 4
Network: RJ-45 10/100 Mbps
Compatibility: ONVIF(S/T)
Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
Network security: Video encryption,Configuration encryption,Digest,WSSE,Account lockout,Security logs,Generation and importing of X.509 certification,HTTPS,Trusted boot,Trusted execution,Trusted upgrade
Power supply type: 12V DC / PoE(802.3af)
Power consumption: max 5.3W
Housing color: White
IP class: IP67
Working environment: -40°C~+60°C max 95% RH
Dimensions: 173.3×70×70mm
Weight: 0.44 kg
Box dimensions in mm (W×D×H): 206×106×97
Ai - Built-in intelligent functions: Built-in intelligent algorithm of image analisis
Ai - SMD - Smart Motion Detection: Intelligent motion detection with human recognition
