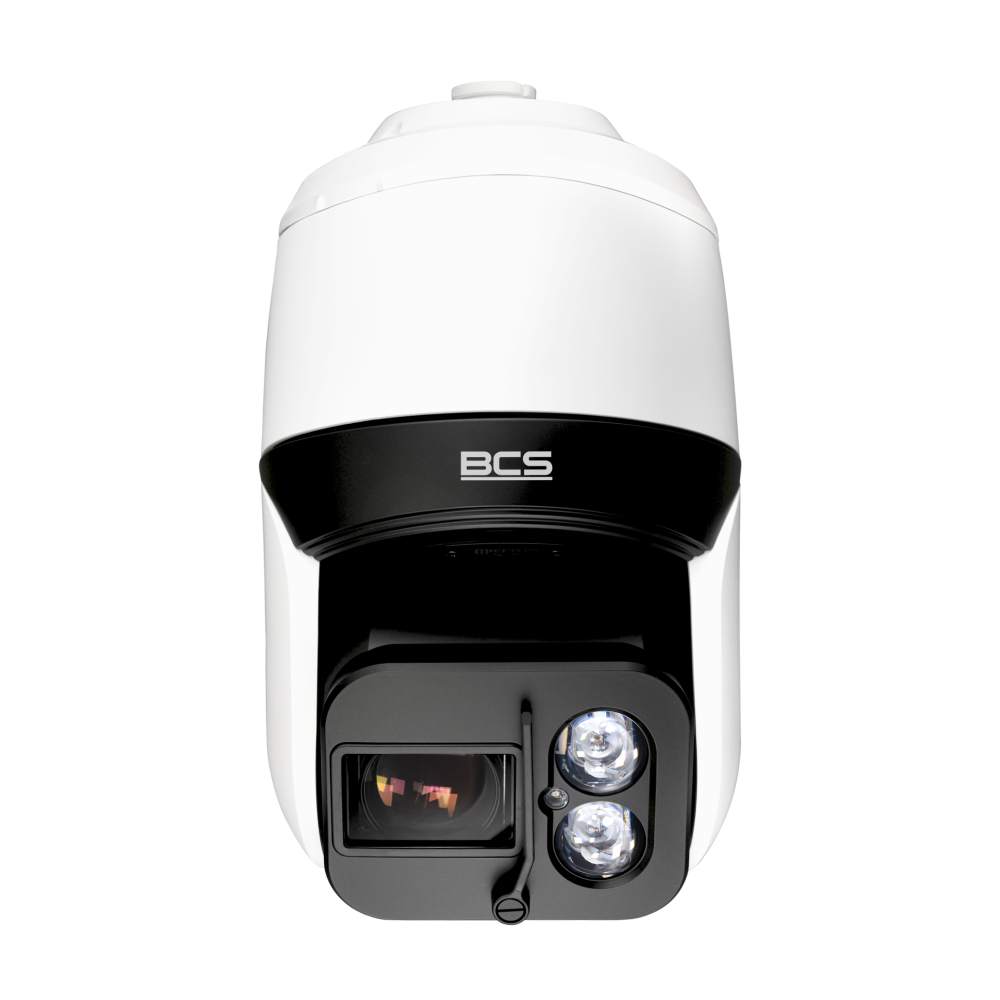

BCS-U-SIP6631SR30(2)

Data sheet

Product

BCS-U-SIP6631SR30(2)

Product line

BCS ULTRA

NDAA

National Defense Authorization Act

Camera type

PTZ

Resolution

6 Mpx

Sensor

1/1.8'' CMOS

Scanning system

Progressive Scan

Pixels

3328(H)×1872(V)

Lens

motozoom

Focal length

6.91~214.64 mm

Aperture

F 1.36~4.6

Focus

Auto / manual

Iris

Auto / P-iris

Optical zoom

31×

Angle of view

Wide : 61.8°(H), 36.3°(V), 70.3°(D) Tele : 2.3°(H), 1.3°(V), 2.6°(D)

Min illumination

0.13Lux(F1.36) 0Lux(B/W,IR)

White balance

(AWB) Auto / manual

WDR

120dB

Backlight compensation

WDR(120dB)

Shutter

Auto / manual 1/30~1/10000s

Gain control

(AGC) Auto / manual

Image Stabilization

Electronic (EIS)

Defog

Electronic

Image rotate

Mirror, Flip

Stream support

4

Resolutions

3328 x 1872, 1920x1080, 1280x720, 640x360

Main stream

3328×1872@30fps

Video compression

H.265 / H.265+ / H.264+ / H.264 / MJPEG

Day/night

ICR mechanical infrared filter

Illuminator type

IR LED

IR range

300m

Audio in

1

Audio out

1

Audio compression

ADPCM 16K / G.726 / G.711u / G.711a

Alarm in

8

Alarm out

2

Memory card slot

microSD 512GB

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

Yes

Privacy masking

8

Network

RJ-45 10/100 Mbps

Compatibility

ONVIF

Protocols

DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2

Network security

Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption

Power supply type

24V AC / PoE(802.3bt)

Power consumption

max 53.1W

Housing color

White

IP class

IP66

IK10

Yes

Built-in heater

Yes

Working environment

-40°C~+55°C max 95% RH

Dimensions

Ø242mm×401.8mm

Weight

7.4 kg

PAN speed

0.02°/s~240°/s(240°/s preset)

TILT speed

0.02°/s~240°/s(240°/s preset)

PAN range

0°~360°

TILT range

-10°~190°

Automatic functions

256 presets
