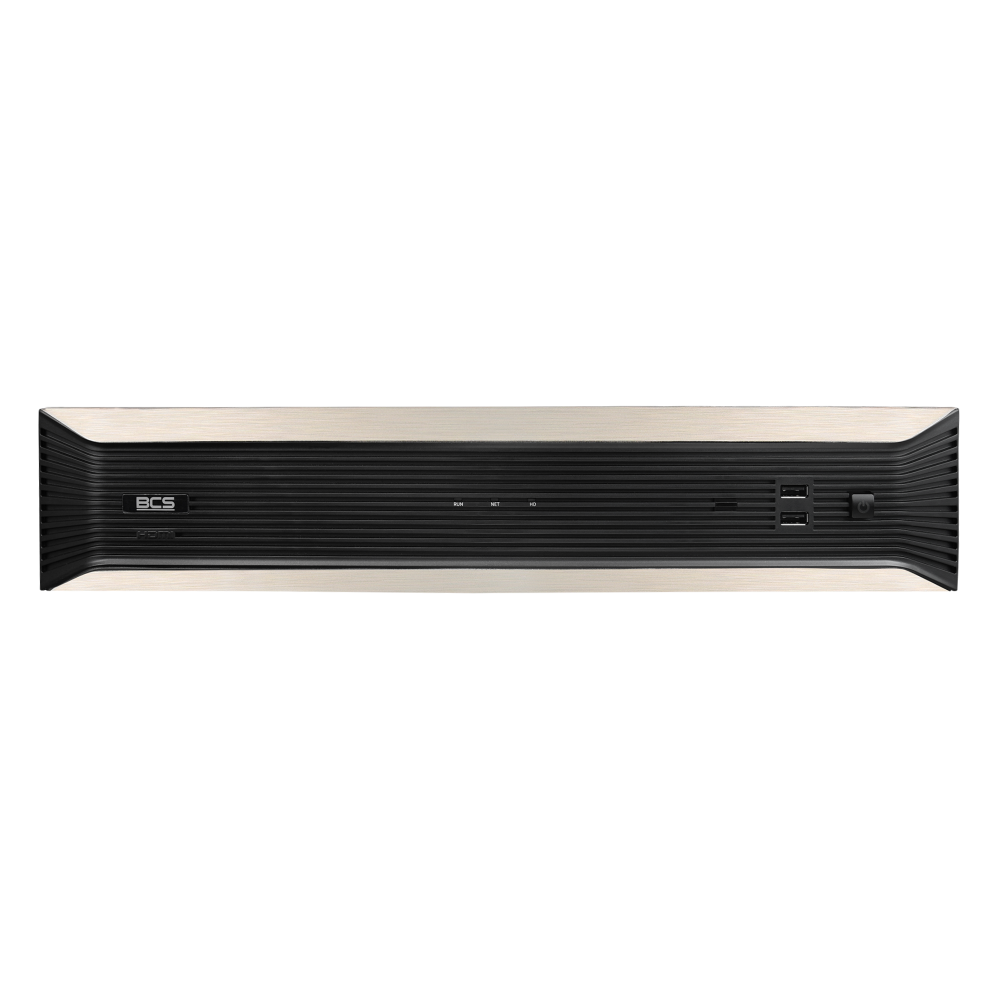

BCS-P-NVR6408-A-4K(5L)

Data sheet

Product

BCS-P-NVR6408-A-4K(5L)

Product line

BCS POINT

NDAA

National Defense Authorization Act

System

IP

Pentaplex function

Live view / recording / playback / archiving / remote access

Channels

64

HDD support

8

HDD capacity

24 TB

ANR

Automatic synchronization of recordings from the camera's microSD card after the connection is lost and restored.

Max recording resolution

16 Mpx

Incoming bandwidth

320Mbps

Outgoing bandwidth

160Mbps

Display efficiency

Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1

Recording resolutions

16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF

Video compression

H.265+ / H265 / H.264

HDMI out

HDMI4K

VGA out

VGA

HDMI display resolutions

3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768

VGA display resolutions

1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768

Display split

1/4/6/8/9/16/25/36/64 (3/4/5/7/9/10/12/16/32 corridor mode)

Synchronous playback

1/4/9/16

Archiving

Possibility to download material to external media such as USB FLASH, USB HDD

User connections

128

Interfaces

2×USB2.0, 1×USB3.0

Serial port

RS485

Audio in

1

Audio out

1

Audio compression

G.711A / G.711U

Alarm in

16

Alarm out

4

Support

Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Network

2×RJ-45 10/100/1000Mbps

Compatibility

ONVIF(S/G/T), support third party cameras

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

Cluster support

N+1

Power supply

100~240V AC

Power consumption (without HDD)

max 32W

Working environment

-10°C~+55°C max 90% RH

Casing

2U

Dimensions mm (W×D×H)

442×426×89

Weight (without HDD)

4 kg

Ai - Intelligent functions from camera

Face Detection/Comparison, Vehicle Detection, SIP(Intrusion/Cross Line, Enter/Leave Area), Ultra Motion Detection(UMD), Temperature(Fire/Smoking/Measurement/Smoke/Fire Detection), People Counting(People Flow, Crowd Density), Video Metadata, Traffic
