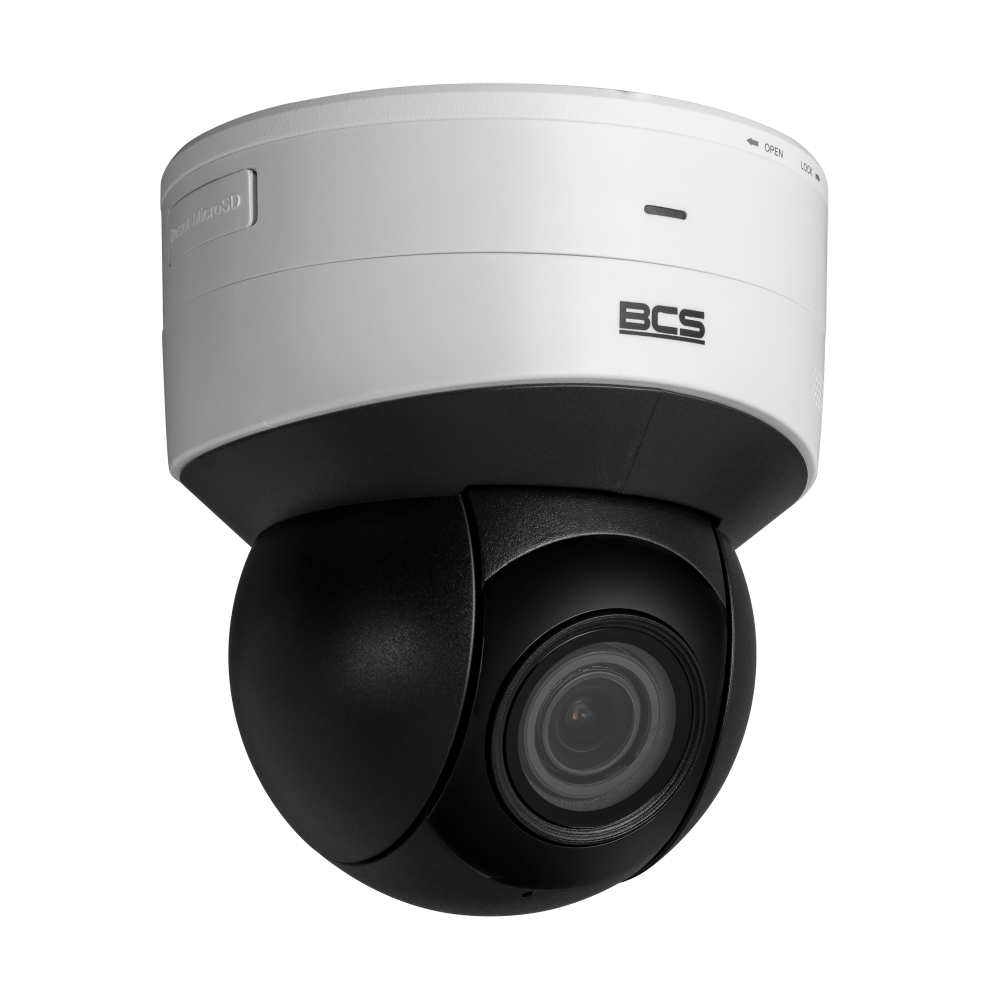

BCS-P-SIP155SR3-Ai2(2)

Data sheet

Product

BCS-P-SIP155SR3-Ai2(2)

Product line

BCS POINT

NDAA

National Defense Authorization Act

Camera type

PTZ

Resolution

5 Mpx

Sensor

1/2.7'' CMOS

Scanning system

Progressive Scan

Pixels

2880(H)×1620(V)

Lens

motozoom

Focal length

2.7~13.5 mm

Aperture

F1.2

Focus

Auto / manual

Iris

Auto / manual

Optical zoom

5×

Digital zoom

16×

Angle of view

H:104.9°~30.6° V:55.4°~17.7° D:129°~39.8°

DORI

Detect 70.9~247.5m / Observe 28.4~99m / Recognize 14.2~49.5m / Identify 7.1~24.8m

Min illumination

0.003Lux(F1.2,AGC) 0Lux(B/W,IR)

S/N ratio

56dB

White balance

(AWB) Auto / manual

WDR

120dB

Backlight compensation

BLC / HLC / WDR(120dB)

Shutter

Auto / manual 1~1/100000s

Gain control

(AGC) Auto / manual

Noise reduction

2D/3D DNR

RoI

Region of Interest

Defog

Electronic

Image rotate

Mirror, Flip

Stream support

3

Main stream

2880×1620(25/30fps)

Second stream

1280×720(25/30fps)

Third stream

720×576(25/30fps)

Bitrate

128Kbps~16Mbps

Video compression

H.265 / H.265+ / H.264+ / H.264 / MJPEG

Day/night

ICR mechanical infrared filter

Illuminator type

IR LED

IR range

30m

IR wavelength

850nm

Microphone

Yes

Loudspeaker

Yes

Audio in

1

Audio out

1

Audio compression

G.711A / G.711U

Alarm in

1

Alarm out

1

Storage

ANR, NAS(NFS)

Memory card slot

microSD 512GB

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

Yes

Privacy masking

24

Network

RJ-45 10/100 Mbps

Wi-Fi

802.11b/g/n 2.4GHz

Compatibility

ONVIF(S/G/T)

Protocols

SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

Network security

TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Power supply type

12V DC / PoE(802.3at)

Power consumption

max 18W

Housing color

White

Surge protection

TVS 4kV

Working environment

-10°C~+50°C max 95% RH

Dimensions

Ø129mm×143.6mm

Weight

0.78kg

PAN speed

0.1°/s~60°/s(60°/s preset)

TILT speed

0.1°/s~50°/s(50°/s preset)

PAN range

0°~350°

TILT range

0°~90°

Automatic functions

1024 presety, 16 tras(po 64 presety)

Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis

Ai - Perimeter protection

Crossline, intrusion

Ai - Human/vehicle detection

Human/vehicle classification for crossline and intrusion reduces false alarms

Ai - Face detection

Face detection and tracking, photo face.
