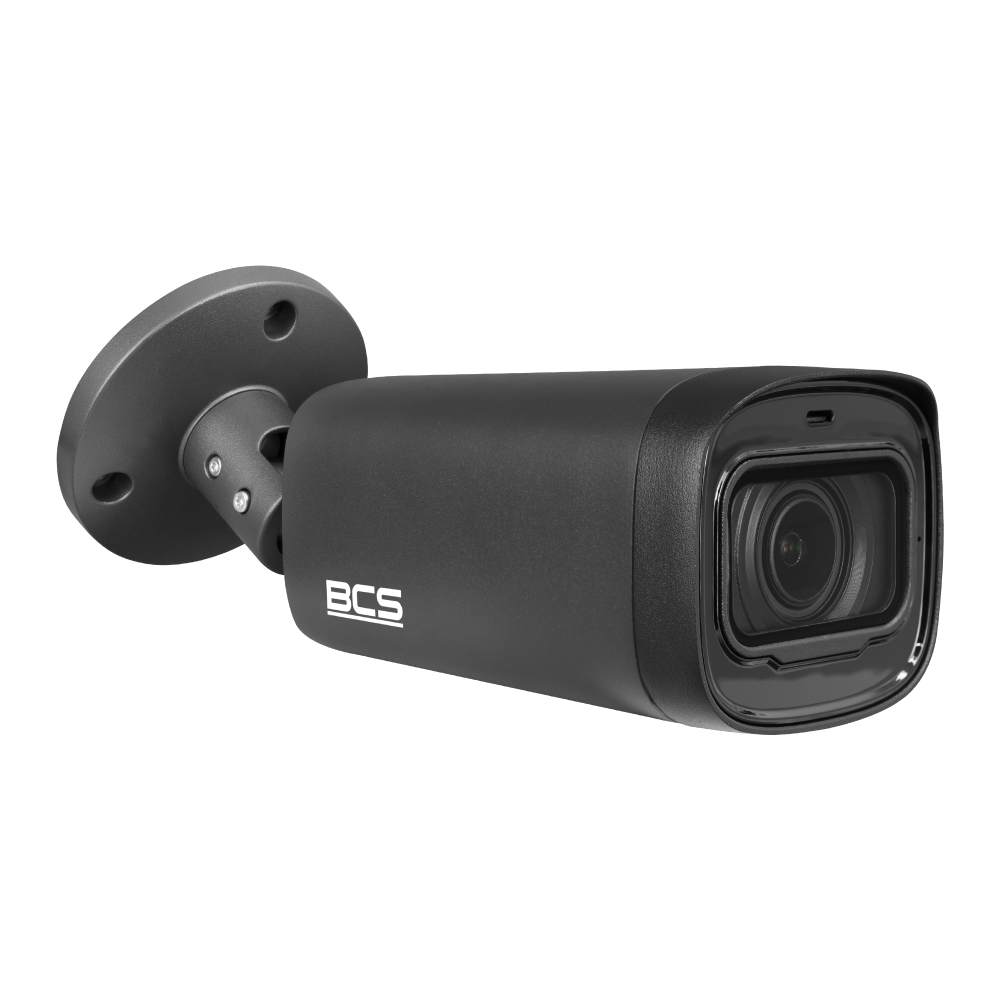

BCS-TA45VSR8-G

Data sheet

Product

BCS-TA45VSR8-G

Product line

BCS UNIVERSAL

Camera type

Bullet

Transmission standard

HD-CVI / AHD / HD-TVI / ANALOG CVBS

Resolution

5 Mpx

Scanning system

Progressive Scan

Pixels

2880(H)×1620(V)

Lens

motozoom

Focal length

2.7~13.5 mm

Aperture

F1.6

Focus

Manual

Iris

fixed

Optical zoom

5×

Angle of view

H: 32.7°~111.8° V: 18.4°~58.3°D: 37.5°~135.2°

DORI

Detect 65.4~202m / Observe 26.2~80.8m / Recognize 13.1~40.4m / Identify 6.54~20.2m

Min illumination

0.01Lux(F1.6) 0.001Lux(B/W,F1.6,30IRE) 0Lux(B/W,IR)

S/N ratio

65dB

White balance

(AWB) Auto / manual

WDR

DWDR

Backlight compensation

BLC / HLC / DWDR

Shutter

Auto / manual 1/30s~1/10000s

Gain control

(AGC) Auto / manual

Noise reduction

3D DNR

Image rotate

Mirror

Resolutions

5M(2880×1620) 4M(2560×1440) 1080p(1920×1080) 960H(960×576/960×480); TVI 5M 16:9(2960×1665)

Day/night

ICR mechanical infrared filter

Illuminator type

IR LED

IR range

80m

Microphone

Yes

Support

Support for settings in the camera OSD menu by the BCS-XVR recorder

Privacy masking

8

Power supply type

12V DC

Power consumption

max 9.9W

Housing color

Graphite

IP class

IP67

Working environment

- 30°~+60° max 95% RH

Dimensions

209.9×90.4×90.4mm

Weight

0.54 kg

Casing

Metal

Box dimensions in mm (W×D×H)

240×115×111
