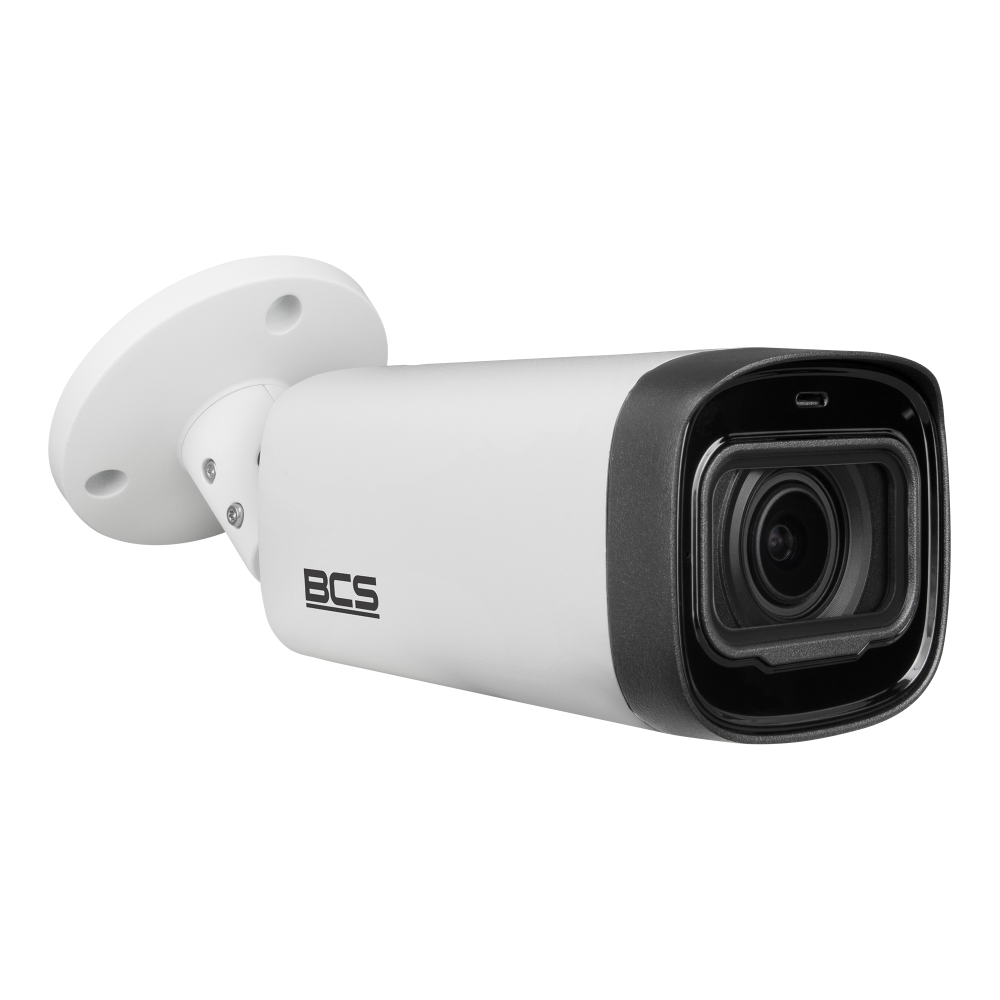

BCS-TA45VSR8

BCS UNIVERSAL

Reference 13359

5Mpx analogue HD bullet camera
HDCVI/AHD/TVI/CVBS
PS CMOS sensor
IR 80m
Microphone
IP67 housing

Availability In production

Price visibility

369 PLN tax excl.

Ask about product

Download PDF

Polityka bezpieczeństwa

(edytuj w module Customer Reassurance)

Zasady dostawy

(edytuj w module Customer Reassurance)

Zasady zwrotu

(edytuj w module Customer Reassurance)

Product Details

Reference 13359

GTIN13/EAN13 5904890718500

Data sheet

Product: BCS-TA45VSR8
Product line: BCS UNIVERSAL
Camera type: Bullet
Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG CVBS
Resolution: 5 Mpx
Scanning system: Progressive Scan
Pixels: 2880(H)×1620(V)
Lens: motozoom
Focal length: 2.7~13.5 mm
Aperture: F1.6
Focus: Manual
Iris: fixed
Optical zoom: 5×
Angle of view: H: 32.7°~111.8° V: 18.4°~58.3°D: 37.5°~135.2°
DORI: Detect 65.4~202m / Observe 26.2~80.8m / Recognize 13.1~40.4m / Identify 6.54~20.2m
Min illumination: 0.01Lux(F1.6) 0.001Lux(B/W,F1.6,30IRE) 0Lux(B/W,IR)
S/N ratio: 65dB
White balance: (AWB) Auto / manual
WDR: DWDR
Backlight compensation: BLC / HLC / DWDR
Shutter: Auto / manual 1/30s~1/10000s
Gain control: (AGC) Auto / manual
Noise reduction: 3D DNR
Image rotate: Mirror
Resolutions: 5M(2880×1620) 4M(2560×1440) 1080p(1920×1080) 960H(960×576/960×480); TVI 5M 16:9(2960×1665)
Day/night: ICR mechanical infrared filter
Illuminator type: IR LED
IR range: 80m
Microphone: Yes
Support: Support for settings in the camera OSD menu by the BCS-XVR recorder
Privacy masking: 8
Power supply type: 12V DC
Power consumption: max 9.9W
Housing color: White
IP class: IP67
Working environment: - 30°~+60° max 95% RH
Dimensions: 209.9×90.4×90.4mm
Weight: 0.54 kg
Casing: Metal
Box dimensions in mm (W×D×H): 240×115×111
