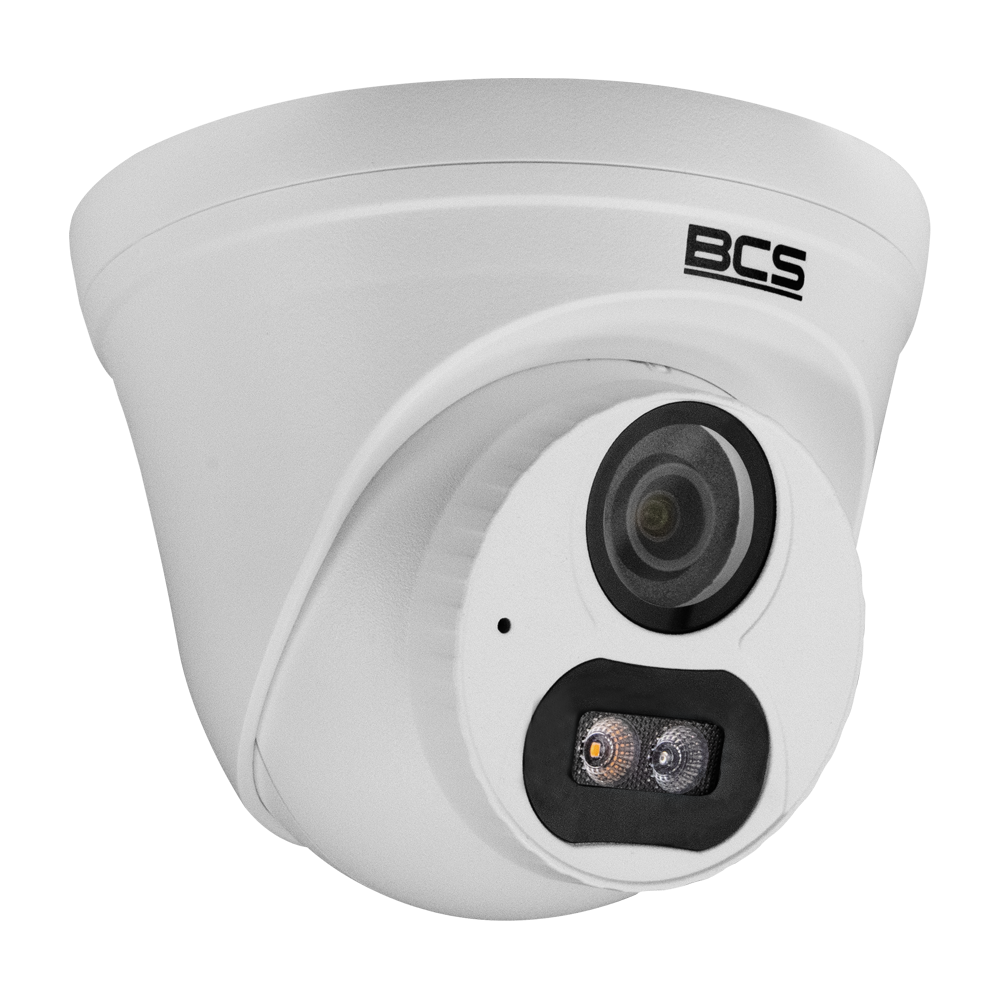

BCS-B-EIP14FSR3L1-Ai(2.0)

Data sheet

Product

BCS-B-EIP14FSR3L1-Ai(2.0)

Product line

BCS BASIC

NDAA

National Defense Authorization Act

Camera type

Dome

Resolution

4 Mpx

Sensor

1/3'' CMOS

Scanning system

Progressive Scan

Pixels

2560(H)×1440(V)

Lens

fixed

Focal length

2.8 mm

Aperture

F1.6

Focus

fixed

Iris

fixed

Angle of view

H: 93.2° V: 51.5° D: 108°

DORI

Detect 63m / Observe 25.2m / Recognize 12.6m / Identify 6.3m

Min illumination

0.003Lux(F1.6,AGC) 0Lux(B/W,IR)

S/N ratio

52dB

White balance

(AWB) Auto / manual

WDR

DWDR

Backlight compensation

BLC / HLC / DWDR

Shutter

Auto / manual 1~1/100000s

Gain control

(AGC) Auto / manual

Noise reduction

2D/3D DNR

RoI

Region of Interest

Defog

Digital

Image rotate

Mirror, Flip 0°/90°(corridor mode)/180°/270°

Stream support

2

Resolutions

4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / (640×360) / 2CIF(704×288) / CIF(352×288)

Main stream

2560×1440@25fps 2304×1296@30fps 1920×1080@30fps

Second stream

640×360@30fps 704×288@30fps 352×288@30fps

Bitrate

128Kbps~6144kbps

Video compression

H.265 / H.265+ / H.264

Day/night

ICR

Illuminator type

IR LED + WhiteLight

IR range

30m

IR wavelength

850nm

WhiteLight range

10m

Microphone

Yes

Audio compression

G.711A / G.711U

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

4

Privacy masking

4

Network

RJ-45 10/100Mbps

Compatibility

ONVIF(S/T)

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP, SNMP

Network security

Strong Password, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF, Log Encrypted Export

Power supply type

PoE(802.3af)

Power consumption

max 3.5W

Housing color

White

IP class

IP67

Surge protection

4kV

Working environment

-30°C~+60°C max 95% RH

Dimensions

Ø118×100mm

Weight

0.2 kg

Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis

Ai - SMD - Smart Motion Detection

Intelligent motion detection with human recognition
