- New
BCS-B-TIP14FSR3L1-Ai(2.0)
BCS BASIC
13607

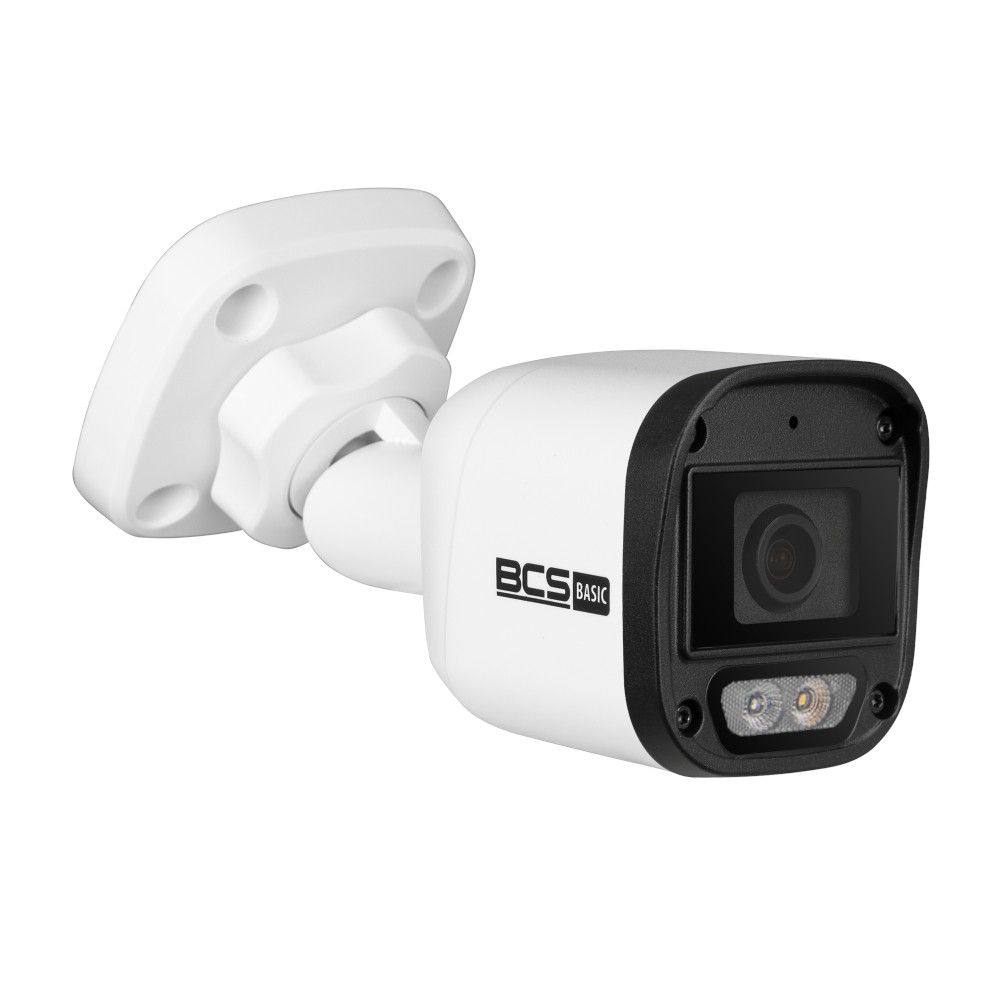

- 4Mpx IP bullet camera
- 1/3" PS CMOS sensor
- SkyLight technology
- NDAA compliant
- 2.8mm fixed lens
- IR 30m
- White Light 10m
- Microphone
- IP67-rated housing
- Smart motion detection with human recognition
Polityka bezpieczeństwa
(edytuj w module Customer Reassurance)
Zasady dostawy
(edytuj w module Customer Reassurance)
Zasady zwrotu
(edytuj w module Customer Reassurance)
Product Details
13607
5904890719910
35 Items
Data sheet
- Product
- BCS-B-TIP14FSR3L1-Ai(2.0)
- Product line
- BCS BASIC
- NDAA
- National Defense Authorization Act
- Camera type
- Bullet
- Resolution
- 4 Mpx
- Sensor
- 1/3'' CMOS
- Scanning system
- Progressive Scan
- Pixels
- 2560(H)×1440(V)
- Lens
- fixed
- Focal length
- 2.8 mm
- Aperture
- F1.6
- Focus
- fixed
- Iris
- fixed
- Angle of view
- H: 93.2° V: 51.5° D: 108°
- DORI
- Detect 63m / Observe 25.2m / Recognize 12.6m / Identify 6.3m
- Min illumination
- 0.003Lux(F1.6,AGC) 0Lux(B/W,IR)
- S/N ratio
- 52dB
- White balance
- (AWB) Auto / manual
- WDR
- DWDR
- Backlight compensation
- BLC / HLC / DWDR
- Shutter
- Auto / manual 1~1/100000s
- Gain control
- (AGC) Auto / manual
- Noise reduction
- 2D/3D DNR
- RoI
- Region of Interest
- Defog
- Digital
- Image rotate
- Mirror, Flip 0°/90°/180°/270°
- Stream support
- 2
- Resolutions
- 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / (640×360) / 2CIF(704×288) / CIF(352×288)
- Main stream
- 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps
- Second stream
- 640×360@30fps 704×288@30fps 352×288@30fps
- Bitrate
- 128Kbps~6144kbps
- Video compression
- H.265 / H.265+ / H.264
- Day/night
- ICR
- Illuminator type
- IR LED + WhiteLight
- IR range
- 30m
- IR wavelength
- 850nm
- WhiteLight range
- 10m
- Microphone
- Yes
- Audio compression
- G.711A / G.711U
- Support
- Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
- Motion detect
- 4
- Privacy masking
- 4
- Network
- RJ-45 10/100Mbps
- Compatibility
- ONVIF(S/T)
- Protocols
- IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP, SNMP
- Network security
- Strong Password, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF, Log Encrypted Export
- Power supply type
- PoE(802.3af)
- Power consumption
- max 3.5W
- Housing color
- White
- IP class
- IP67
- Surge protection
- 4kV
- Working environment
- -30°C~+60°C max 95% RH
- Dimensions
- 140×61×65mm
- Weight
- 0.2 kg
- Ai - Built-in intelligent functions
- Built-in intelligent algorithm of image analisis
- Ai - SMD - Smart Motion Detection
- Intelligent motion detection with human recognition
Accessories
Reference: 11156
Brand: BCS BASIC
BCS-B-STIP/BTIP(2.0)
Mounting box for BCS-B-TIP tube cameras from the BCS BASIC series
Reference: 12313
Brand: BCS UNIVERSAL
BCS-ADU100
Universal mounting box for cameras Box diameter Ø100mm Number of camera mounting holes: 2, 3, 4 Adjustable camera mounting hole spacing: Ø53mm–Ø78mm Compatible with ceiling mounting systems (P-UAD, P-IAD22, P-IAD52) or (ARS200, ARS120, R100)
Reference: 12314
Brand: BCS UNIVERSAL
BCS-ADU125
Universal mounting box for cameras Box diameter Ø125mm Number of camera mounting holes: 2, 3, 4 Adjustable camera mounting hole spacing: Ø53mm–Ø102mm Compatible with ceiling mounting systems (P-UAD, P-IAD22, P-IAD52) or (ARS200, ARS120, R100)
- 4Mpx IP bullet camera
- 1/3" PS CMOS sensor
- SkyLight technology
- NDAA compliant
- 2.8mm fixed lens
- IR 30m
- White Light 10m
- Microphone
- IP67-rated housing
- Smart motion detection with human recognition
