- New
BCS-P-DIP24FCL3-Ai1
BCS POINT
13555

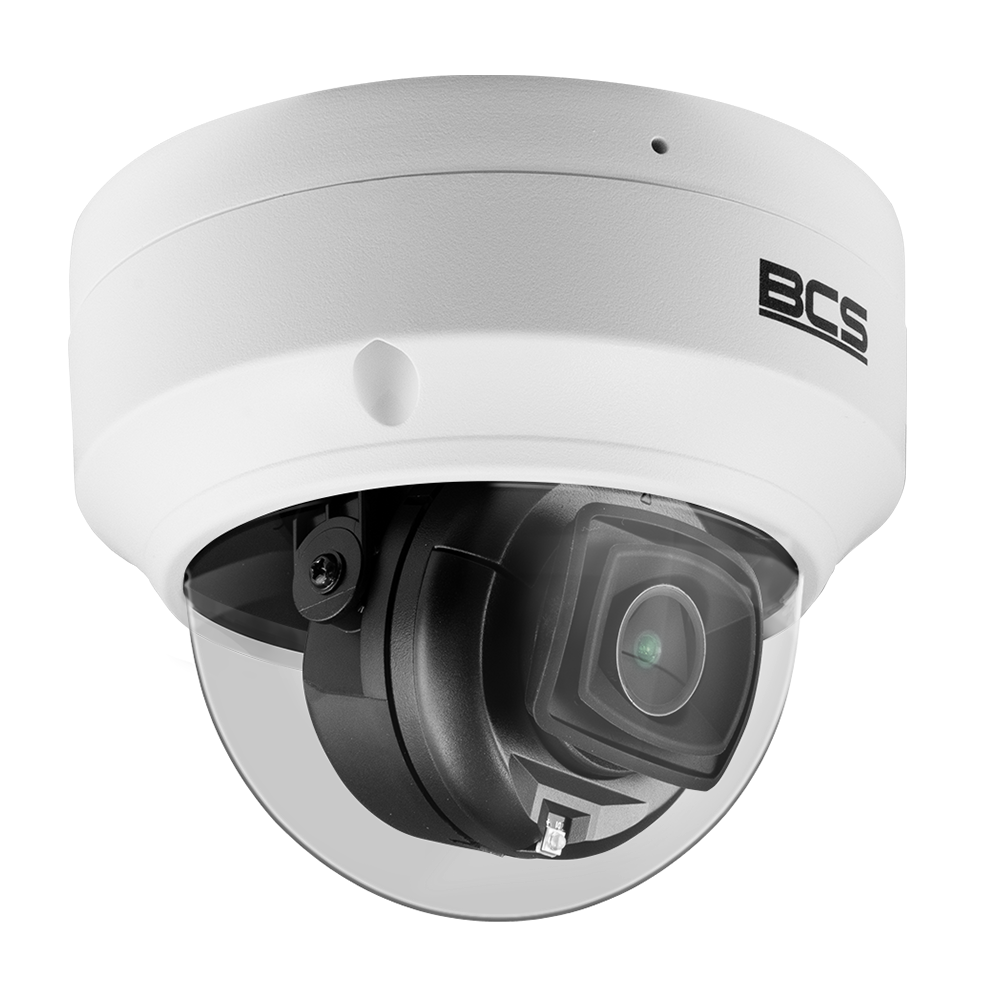

- 4MP Dome IP Camera
- 1/1.8" PS CMOS Sensor
- NightColor Technology
- NDAA Compliant
- 2.8mm Fixed Lens
- WDR120dB
- 30m WhiteLight
- Microphone
- IP67, IK10 Housing
- Built-in Smart Features
Polityka bezpieczeństwa
(edytuj w module Customer Reassurance)
Zasady dostawy
(edytuj w module Customer Reassurance)
Zasady zwrotu
(edytuj w module Customer Reassurance)
Product Details
13555
5904890719477
39 Items
Data sheet
- Product
- BCS-P-DIP24FCL3-Ai1
- Product line
- BCS POINT
- NDAA
- National Defense Authorization Act
- Camera type
- Dome
- Resolution
- 4 Mpx
- Sensor
- 1/1.8'' CMOS
- Scanning system
- Progressive Scan
- Pixels
- 2688(H)×1520(V)
- Lens
- fixed
- Focal length
- 2.8 mm
- Aperture
- F1.0
- Focus
- fixed
- Iris
- fixed
- Angle of view
- H: 124.3° V: 61.4° D: 135°
- DORI
- Detect 43.4m / Observe 17.4m / Recognize 8.7m / Identify 4.3m
- Min illumination
- 0.0003Lux(F1.0,AGC)
- S/N ratio
- 52dB
- White balance
- (AWB) Auto / manual
- WDR
- 120dB
- Backlight compensation
- BLC / HLC / WDR(120dB)
- Shutter
- Auto / manual 1~1/100000s
- Gain control
- (AGC) Auto / manual
- Noise reduction
- 2D/3D DNR
- RoI
- Region of Interest
- Defog
- Digital
- Image rotate
- Mirror, Flip 0°/90°(corridor mode)/180°/270°
- Stream support
- 2
- Resolutions
- 4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288)
- Main stream
- 2688×1520@25fps 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps 1280×720@30fps
- Second stream
- 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps
- Bitrate
- 128Kbps~6144kbps
- Video compression
- H.265 / H.265+ / H.264 / MJPEG
- Illuminator type
- WhiteLight
- WhiteLight range
- 30m
- Microphone
- Yes
- Audio compression
- G.711A / G.711U
- Storage
- NAS(NFS)
- Memory card slot
- microSD 512GB
- Support
- Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
- Motion detect
- Yes
- Privacy masking
- 4
- Network
- RJ-45 10/100Mbps
- Compatibility
- ONVIF(S/G/T)
- Protocols
- IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS
- Network security
- Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Power supply type
- 12V DC / PoE(802.3af)
- Power consumption
- max 4W
- Housing color
- White
- IP class
- IP67
- IK10
- Yes
- Surge protection
- 4kV
- Working environment
- -30°C~+60°C max 95% RH
- Dimensions
- Ø128×100mm
- Weight
- 0.53 kg
- Ai - Built-in intelligent functions
- Built-in intelligent algorithm of image analisis
- Ai - Perimeter protection
- Crossline, intrusion
- Ai - Human/vehicle detection
- Recognition of people entering the area and crossing the line reduces false alarms.
Accessories
Reference: 10675
Brand: BCS UNIVERSAL
BCS-ADU-B
Universal mounting box for cameras Box diameter Ø155mm Number of camera mounting holes: 2, 3, 4 Adjustable camera mounting hole spacing: Ø58mm–Ø133mm Compatible with ceiling mounting systems (P-UAD, P-IAD22, P-IAD52) or (ARS200, ARS120, R100)
Reference: 12315
Brand: BCS UNIVERSAL
BCS-ADU170
Universal mounting box for cameras Box diameter Ø170mm Number of camera mounting holes: 2, 3, 4 Adjustable camera mounting hole spacing: Ø53mm–Ø149mm Compatible with ceiling mounting systems (P-UAD, P-IAD22, P-IAD52) or (ARS200, ARS120, R100)
- 4MP Dome IP Camera
- 1/1.8" PS CMOS Sensor
- NightColor Technology
- NDAA Compliant
- 2.8mm Fixed Lens
- WDR120dB
- 30m WhiteLight
- Microphone
- IP67, IK10 Housing
- Built-in Smart Features
