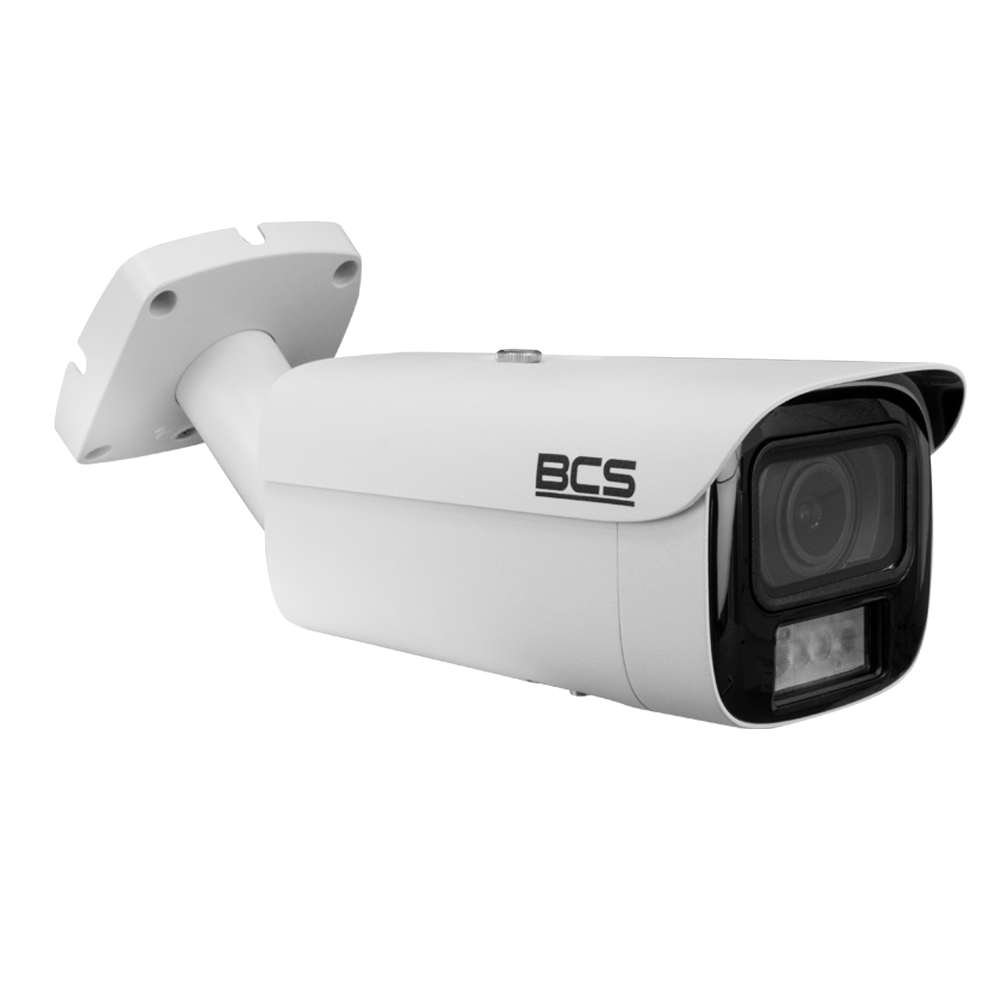

BCS-L-TIP64VCR6L6H-Ai2

Data sheet

Product

BCS-L-TIP64VCR6L6H-Ai2

Brand

BCS LINE

Camera type

Bullet

Resolution

4 Mpx

Sensor

1/1.8'' CMOS

Scanning system

Progressive Scan

Pixels

2688(H)×1520(V)

RAM

2GB

ROM

4GB

Lens

motozoom

Focal length

2.7~12 mm

Aperture

F1.8

Focus

Auto / manual

Iris

Auto

Optical zoom

4×

Digital zoom

16×

Angle of view

H: 115°~47° V: 62°~27° D: 137°~54°

DORI

Detect 57.5~130.8m / Observe 23~52.3m / Recognize 11.5~26.2m / Identify 5.8~13.1m

Min illumination

0.0007Lux(Color,F1.8,30IRE) 0.0004Lux(F1.8,B/W,30IRE) 0Lux(IR)

S/N ratio

56dB

White balance

(AWB) Auto / manual

WDR

140dB

Backlight compensation

BLC / HLC / WDR(140dB) / SSA

Shutter

Auto / manual 1/3~1/100000s

Gain control

(AGC) Auto / manual

Noise reduction

3D DNR

LDC

Lens Distortion Correction

RoI

Region of Interest

Image Stabilization

Electronic (EIS)

Defog

Electronic

Image rotate

Mirror, Flip 0°/90°/180°/270°

Stream support

4

Resolutions

4M(2688×1520/2560×1440) 3M(2048×1536/2304×1296) 1080p(1920×1080) 1.3M(1280×960) 720p(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240)

Main stream

2688×1520(1~25/30fps)

Second stream

704×576(1~25fps) 704×480(1~30fps)

Third stream

1920×1080(1~25/30fps)

Fourth stream

1280×720(1~25/30fps)

Bitrate

H.264: 3 kbps~16384kbps H.265: 3 kbps~16384kbps

Video compression

H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG / Ai Coding

Day/night

ICR mechanical infrared filter

Illuminator type

IR LED + WhiteLight

IR range

60m

WhiteLight range

60m

NightColor

Yes

Microphone

Yes

Audio in

1

Audio out

1

Audio compression

G.711A / G.711Mu / G.723 / G.726 / PCM

Alarm in

2

Alarm out

1

Storage

FTP, SFTP, NAS

Memory card slot

microSD 1TB

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

4

Privacy masking

8

Network

RJ-45 10/100 Mbps

Compatibility

ONVIF(S/G/T/M)

Protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Registration

Network security

Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, Generation and importing of X.509 certification, Syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade, Session security, Security warning

Power supply type

12V DC / PoE(802.3at) / ePoE

Power consumption

max 22.1W

Redundant power

Dual Power Backup

Housing color

White

IP class

IP67

IK10

Yes

Built-in heater

Yes

Working environment

-40°C~+60°C max 95% RH

Dimensions

279.8×96.7×94.9mm

Weight

1.09 kg

Casing

Metal

Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis

Ai - Perimeter protection

Intrusion, crossline, fast moving, loitering, people gathering, parking detection

Ai - Human/vehicle detection

Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms

Ai - Face detection

Face detection and tracking, snapshot, attributes and expression recognition

Ai - People counting

People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time

Ai - Metadata

People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling)

Ai - Heat map

Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones

Ai - SMD - Smart Motion Detection

SMD 4.0

Ai - Smart search

AcuPick technology - intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function

Ai - Large Scale Models

Perimeter protection: increased detection range, reduced false alarms, pet detection and immunity
