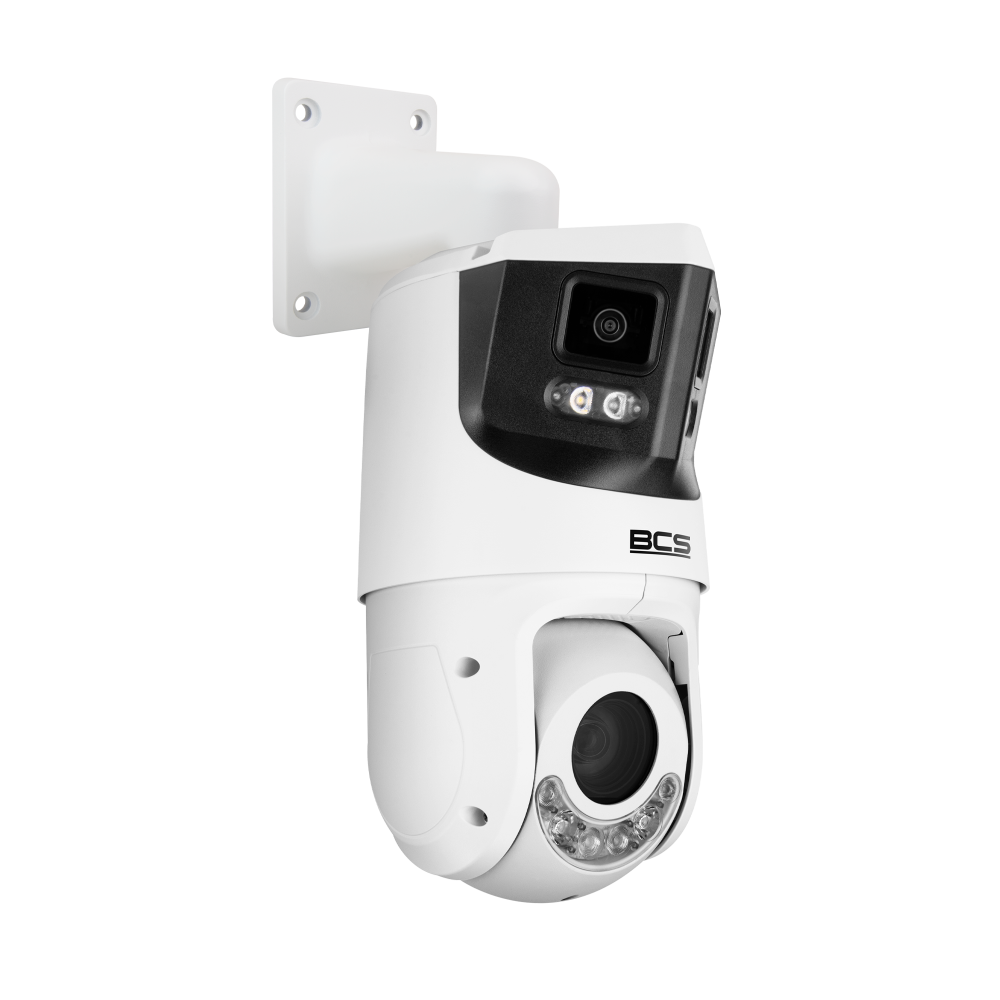

BCS-L-PSIP24825SCR10L5-Ai1

Data sheet

Product

BCS-L-PSIP24825SCR10L5-Ai1

Product line

BCS LINE

Camera type

PTZ+fixed

Resolution

4 Mpx

Resolution overview camera

8 Mpx

Sensor

1/2.8'' CMOS STARVIS

Sensor overview camera

1/2.7'' CMOS

Scanning system

Progressive Scan

Pixels

2560(H)×1440(V)

Pixels overview camera

4096(H)×1860(V)

RAM

1GB

RAM overview camera

2GB

ROM

4GB

ROM overview camera

4GB

Lens

motozoom

Focal length

5~125 mm

Focal lenght overview camera

2.8 mm

Aperture

F1.6~3.6

Aperture overview camera

F1.4

Focus

Auto / manual

Iris

Auto / manual

Optical zoom

25×

Digital zoom

16×

Angle of view

H: 51.9°~3.0° V: 39.7°~2.2° D: 63.1°~3.7°

Angle of view overview camera

H: 180° V: 86°

DORI

Detect 100~2500m / Observe 40~1000m / Recognize 20~500m / Identify 10~250m

DORI overview camera

Detect 56m / Observe 22m / Recognize 11m / Identify 6m

Min illumination

0.005Lux(Color,F1.6,30IRE) 0.0005Lux(F1.6,B/W,30IRE) 0Lux(B/W,IR)

Min illumination overview camera

0.005Lux(Color,F1.4,30IRE) 0.0005Lux(F1.4,B/W,30IRE) 0Lux(B/W,IR)

S/N ratio

55dB

White balance

(AWB) Auto / manual

WDR

120dB

WDR overview camera

DWDR

Backlight compensation

BLC / HLC

Shutter

Auto / manual 1~1/30000s

Gain control

(AGC) Auto / manual

Noise reduction

2D/3D DNR

RoI

Region of Interest

Image Stabilization

Electronic (EIS)

Defog

Electronic

Image rotate

Flip 180°

Stream support

3

Resolutions

4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576)(704×480) / VGA(640×480) / CIF(352×288)(352×240)

Resolutions overview camera

8M(4096×1860) / 2M(2048×928) / 1080P(1920×1080) / 720p(1280×720) / 1024×448 / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)

Main stream

2560×1440 / 2304×1296 / 1920×1080 / 1280×960 / 1280×720(25/30fps)

Main stream overview camera

4096×1860(25/30fps)

Second stream

704×576 / 704×480 / 640×480 / 352×288 / 352×240(25/30fps)

Second stream overview camera

1024×448 / 704×576 / 704×480 / 640×480 / 352×288 / 352×240(25/30fps)

Third stream

1920×1080 / 1280×960 / 1280×720(25/30fps)

Third stream overview camera

2048×928 / 1920×1080 / 1280×960 / 1280×720(25/30fps)

Bitrate

H264: 96 kbps~16384 kbps H265: 38kbps~10240 kbps

Bitrate overview camera

H264: 128 kbps~16384 kbps H265: 51 kbps~13312 kbps

Video compression

H.265 / H.265+ / H.264+ / H.264 / MJPEG

Day/night

ICR mechanical infrared filter

Illuminator type

IR LED + WhiteLight

Illuminator type overview camera

IR LED + WhiteLight

IR range

100m

IR range overview camera

30m

WhiteLight range

50m

WhiteLight range overview camera

30m

NightColor

Yes

Loudspeaker

Yes

Active deterrence function ADC

Sound-optical alarm

Warning lights

Red/Blue Light

Audio in

1

Audio out

1

Audio compression

G.711A / G.711Mu / G.726 / G.722.1 / G.723 / G.729 / MPEG2-L2 / PCM

Alarm in

2

Alarm out

1

Storage

FTP, SFTP, NAS

Memory card slot

microSD 512GB

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

Yes

Network

RJ-45 10/100 Mbps

Compatibility

ONVIF(S/G/T)

Protocols

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS

Power supply type

12V DC / PoE(802.3at)

Power consumption

max 25W

Housing color

White

IP class

IP66

Built-in heater

Yes

Surge protection

TVS 6kV

Working environment

-40°C~+65°C max 95% RH

Dimensions

194.2×160×311mm

Weight

3.1 kg

PAN speed

0.1°/s~180°/s(180°/s preset)

TILT speed

0.1°/s~90°/s(90°/s preset)

PAN range

0°~360°

TILT range

-15°~90° auto-flip

Auto tracking

Yes

Automatic functions

300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan

Box dimensions in mm (W×D×H)

257×243×497

Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis

Ai - Perimeter protection

Intrusion, crossline, fast moving, loitering, people gathering, parking detection

Ai - Human/vehicle detection

Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms

Ai - SMD - Smart Motion Detection

SMD 4.0

Ai - Large Scale Models

Perimeter protection: increased detection range, reduced false alarms

Ai - Wiztracking

Large Scale Models Wiztracking: Increased object tracking accuracy and reliability

Accessories included

Wall mount
