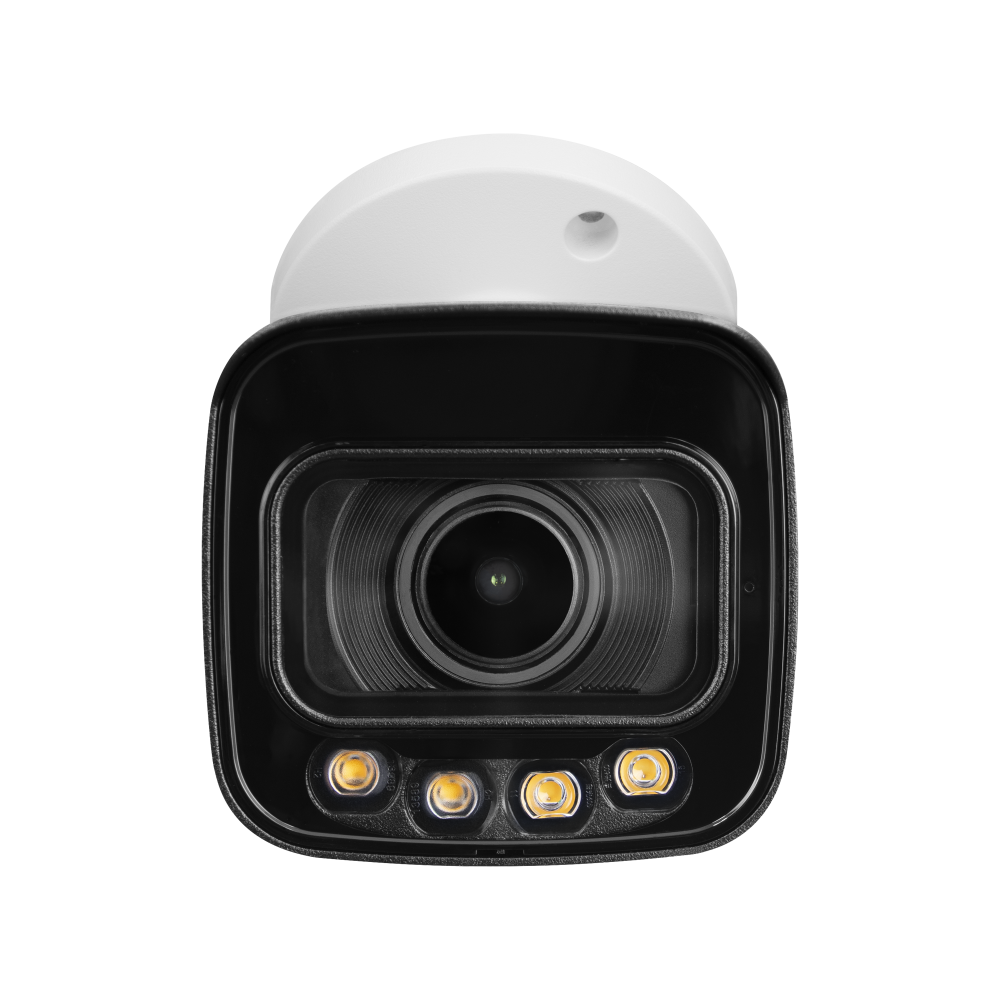

BCS-L-TIP402VIR6-LED-Ai1

Data sheet

Product

BCS-L-TIP402VIR6-LED-AI1

Product line

BCS LINE

Camera type

Bullet

Resolution

4 Mpx

Sensor

1/2.9'' CMOS

Scanning system

Progressive Scan

Pixels

2688(H)×1520(V)

RAM

256MB

ROM

128MB

Lens

motozoom

Focal length

2.7~13.5 mm

Aperture

F1.5

Focus

Auto / manual

Iris

Auto

Optical zoom

5×

Digital zoom

16×

Angle of view

H: 97°~28° V: 52°~16° D: 117°~32°

DORI

Detect 64~210m / Observe 26~84m / Recognize 13~42m / Identify 6~21m

Min illumination

0.006Lux(Color,F1.5,30IRE) 0.0006Lux(B/W,F1.5,30IRE) 0Lux(IR)

S/N ratio

56dB

White balance

(AWB) Auto / manual

WDR

120dB

Backlight compensation

BLC / HLC / WDR(120dB)

Shutter

Auto / manual 1/3~1/100000s

Gain control

(AGC) Auto / manual

Noise reduction

3D DNR

RoI

Region of Interest

Image rotate

Mirror, Flip 0°/90°/180°/270°

Stream support

2

Resolutions

4M(2688×1520)(2560×1440) 3M(2304×1296) 2M(1920×1080) 1.3M(1280×960) 720P(1280×720) D1(704×576/704×480) VGA(640×480) CIF(352×288/352×240)

Main stream

2688×1520@(1~20fps ) 2560×1440@(1~25/30fps)

Second stream

704×576(1~25fps) 704×480(1~30fps)

Bitrate

H.264: 32 Kbps~6144 Kbps H.265: 12 Kbps~6144 Kbps

Video compression

H.265 / H.265+ / H.264 / H.264+ / MJPEG

Day/night

ICR mechanical infrared filter

Illuminator type

IR LED + WhiteLight

IR range

60m

WhiteLight range

60m

NightColor

Yes

Microphone

Yes

Audio in

1

Audio out

1

Audio compression

G.711A / G.711Mu / G.726 / PCM

Alarm in

1

Alarm out

1

Storage

FTP, SFTP

Memory card slot

microSD 256GB

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

4

Privacy masking

4

Network

RJ-45 10/100 Mbps

Compatibility

ONVIF(S/G/T)

Protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P

Network security

Video encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, Generation and importing of X.509 certification, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade

Power supply type

12V DC / PoE(802.3af)

Power consumption

max 12.7W

Housing color

White

IP class

IP67

Working environment

-30°C~+60°C max 95% RH

Dimensions

238.5mm × 90.7mm × 90.7mm

Weight

0.76 kg

Casing

Metal

Box dimensions in mm (W×D×H)

285×120×123

Ai - Built-in intelligent functions

Built-in intelligent algorithm of image analisis

Ai - Perimeter protection

Crossline, intrusion

Ai - Human/vehicle detection

Human/vehicle classification for crossline and intrusion reduces false alarms

Ai - SMD - Smart Motion Detection

SMD Plus
