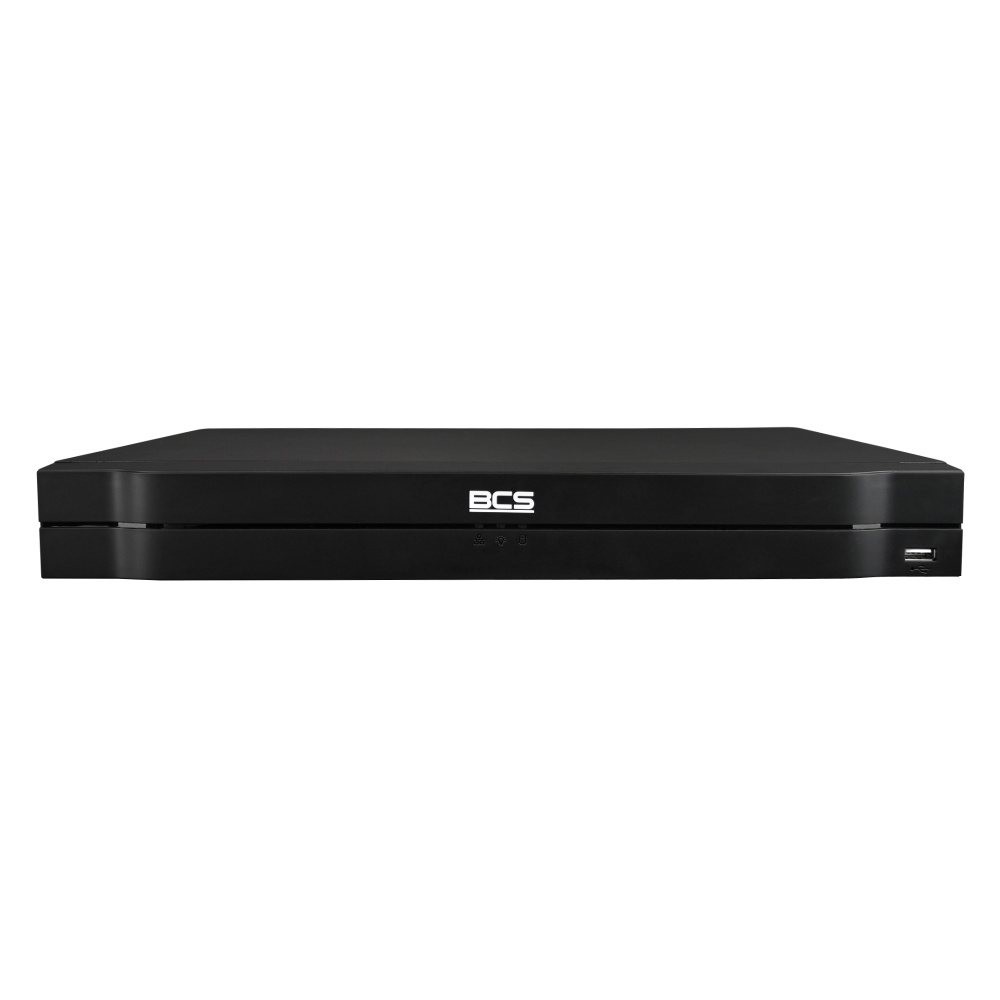

BCS-L-XVR1602-4KE-Ai2

Data sheet

Product

BCS-L-XVR1602-4KE-Ai2

Product line

BCS LINE

Transmission standard

HD-CVI / AHD / HD-TVI / ANALOG / IP

System

Analog HD + IP

Pentaplex function

Live view / recording / playback / archiving / remote access

Channels

16

HDD support

2

HDD capacity

16 TB

Max recording resolution

8 Mpx

Incoming bandwidth

128Mbps

Outgoing bandwidth

128Mbps

Recording bandwidth

128Mbps

HD-CVI camera

4K@25/30 fps; [email protected]/15 fps; 6 MP@20fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps

AHD camera

4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps

HD-TVI camera

4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps

ANALOG camera

CVBS PAL/NTSC

XVR - IP camera

8M

XVR - IP channels

16+16

Recording resolutions

8M / 6M / 5M / 4K Lite / 4M / 3M / 4M Lite / 1080P / 720P / 960H / D1 / CIF

Basic mode

1ch/9ch 4K@15fps, poz 4K@7fps, 1ch/9ch 6MP@20fps poz 6MP@10fps, 1ch/9ch 5MP@25fps, poz 5MP@12fps, 1ch/9ch 4MP/3MP@25/30fps, poz 4MP/3MP@15fps, 4K@8fps, 4K-N/5MP@15fps, 4M-N/1080p/720p/960H/D1/CIF@(25/30fps) Strumień drugi: 960H@15fps, D1/CIF@(25/30fps)

Extended mode

1/5/9/13ch 4K@15fps, poz 4K@7fps, 1/5/9/13ch 6MP@20fps poz 6MP@10fps, 1/5/9/13ch 5MP@25fps, poz 5MP@12fps, 1/5/9/13ch 4MP/3MP@25/30fps, poz 4MP/3MP@15fps, 4K/6MP@10fps, 4K-N/5MP@15fps, 1080p/720p/960H/D1/CIF@25/30fps Str drugi: 960H@15fps, D1/CIF@25/30fps

Bitrate

32Kbps~6144Kbps

Video compression

H.265+ / H265 / H.264+ / H.264 / Ai coding

HDMI out

HDMI4K

VGA out

VGA

HDMI display resolutions

3840×2160 / 1920×1080 / 1280×1024 / 1280×720

VGA display resolutions

1920×1080 / 1280×1024 / 1280×720

Display split

1/4/8/9/16 (1/4/8/9/16/25/36 IP)

Synchronous playback

1/4/9/16

Archiving

Possibility to download material to external media such as USB FLASH, USB HDD

User connections

132

Interfaces

1×USB2.0, 1×USB3.0

Serial port

RS485

Audio in

1

Audio out

1

Audio compression

G.711A / G.711U / PCM

Support

Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion detect

Yes

Privacy masking

Tak

Network

RJ-45(10/100/1000Mbps)

Compatibility

ONVIF

Protocols

HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search

Power supply

12V DC

Power consumption (without HDD)

max 15W

Working environment

-10°C~+55°C max 90% RH

Casing

1U

Dimensions mm (W×D×H)

375×289×53

Weight (without HDD)

1.75 kg

Ai - Built-in intelligent functions

Yes

Ai - Intelligent functions from recorder

Ochrona perymetryczna (rozpoznawanie osoba/pojazd mechaniczny), inteligentna detekcja ruchu (rozpoznawanie osoba/pojazd mechaniczny), detekcja twarzy, identyfikacja twarzy, EPTZ

Ai - Perimeter protection

8 kanały analog HD

Ai - Face detection

4 kanały analog HD, atrybuty twarzy (płeć, wiek, okulary, ekspresja twarzy, maska, zarost), max 12 obrazów na sekunde

Ai - Face recognition

4 kanały analog HD, do 10 baz danych twarzy, 20 tyś obrazów

Ai - SMD - Smart Motion Detection

16 kanały z rejestratora, 32 kanałów z kamer

Ai - Smart search

AcuPick 8 kanały z rejestratora
