- New

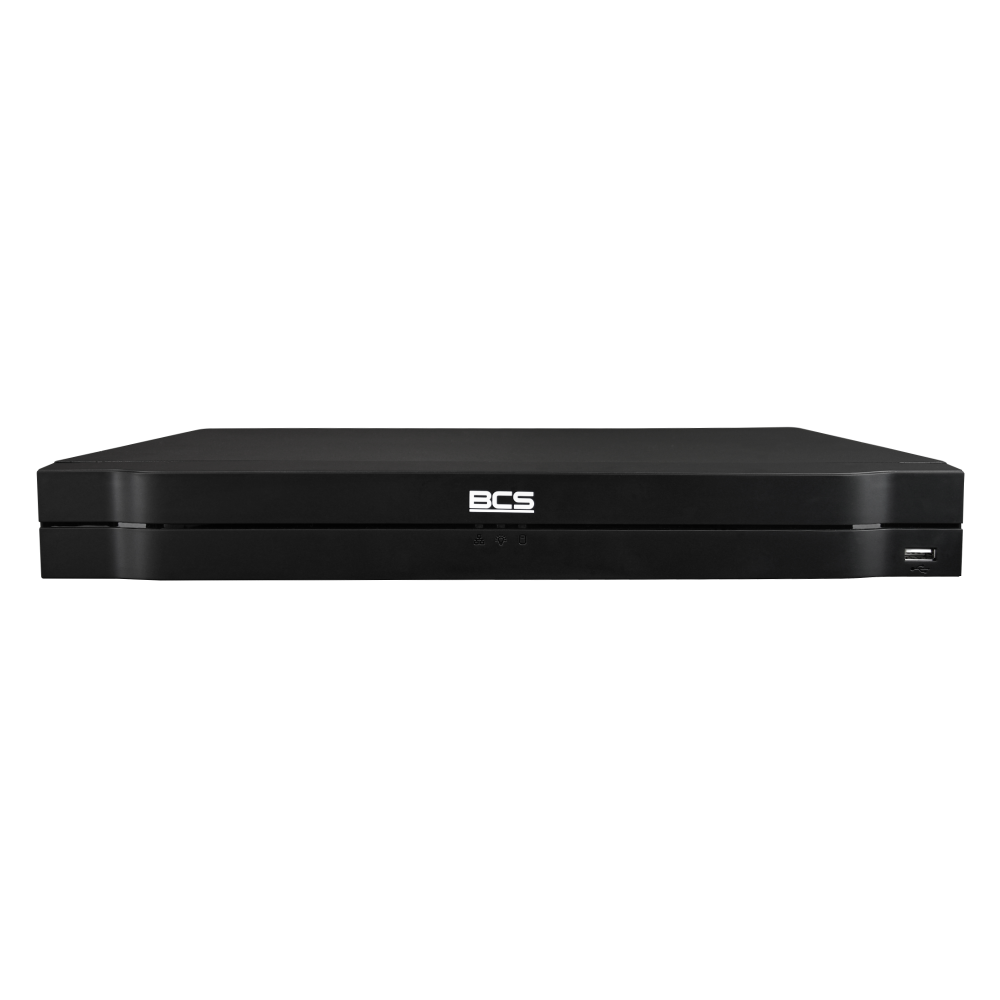

BCS-L-XVR1602-AI
BCS LINE
13207
- 16-channel, 5-system recorder
- HDCVI/AHD/TVI/ANALOGUE/IP
- Supports 2 hard drives
- Supports 5Mpx analogue HD and 6Mpx IP cameras.
- HDMI 4K/VGA output
- Audio 1/1
- Built-in smart features
Polityka bezpieczeństwa
(edytuj w module Customer Reassurance)
Zasady dostawy
(edytuj w module Customer Reassurance)
Zasady zwrotu
(edytuj w module Customer Reassurance)
Product Details
13207
5904890717961
70 Items
Data sheet
- Product
- BCS-L-XVR1602-AI
- Product line
- BCS LINE
- Transmission standard
- HD-CVI / AHD / HD-TVI / ANALOG / IP
- System
- Analog HD + IP
- Pentaplex function
- Live view / recording / playback / archiving / remote access
- Channels
- 16
- HDD support
- 2
- HDD capacity
- 16 TB
- Max recording resolution
- 5 Mpx
- Incoming bandwidth
- 128Mbps
- Outgoing bandwidth
- 128Mbps
- Recording bandwidth
- 128Mbps
- HD-CVI camera
- 5 MP@25 fps, 5 MP@20 fps, 5 MP@10/12.5 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30fps
- AHD camera
- 5 MP@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps
- HD-TVI camera
- 5 MP(2560 × 1944)@20 fps, 5 MP(2960 ×1665)@20/25 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps.
- ANALOG camera
- CVBS PAL/NTSC
- XVR - IP camera
- 6M
- XVR - IP channels
- 16+8
- Recording resolutions
- 5M / 5M Lite / 4M Lite / 1080P / 1080N / 720P / 960H / D1 / CIF
- Basic mode
- Strumień główny: Ch 1-4 5M-N@(1fps–25fps), pozostałe 5M-N@(1fps–12fps); Ch 1-4 4M-N/1080p@(1fps–30fps), pozostałe 4MN/1080p@(1fps–15fps); 1080N/720p/960H/D1/CIF@(1fps–30fps); Strumień drugi: D1/CIF@(1fps–15fps);
- Extended mode
- Strumień główny: Ch 1-8 5M-N@(1fps–20fps), pozostałe 5M-N@(1fps-12fps); (4 ch 5MP@6fps) Ch 1-8 4M-N/1080p@(1fps–25fps), pozostałe 4MN/1080p@(1fps–15fps); 1080N/720p/960H/D1/CIF@(1fps–30fps); Strumień drugi: D1/CIF@(1fps–15fps);
- Bitrate
- 32Kbps~6144Kbps
- Video compression
- H.265+ / H265 / H.264+ / H.264 / Ai coding
- HDMI out
- HDMI4K
- VGA out
- VGA
- HDMI display resolutions
- 3840×2160 / 1920×1080 / 1280×1024 / 1280×720
- VGA display resolutions
- 1920×1080 / 1280×1024 / 1280×720
- Display split
- 1/4/8/9/16 (1/4/8/9/16/25/36 IP)
- Synchronous playback
- 1/4/9/16
- Archiving
- Possibility to download material to external media such as USB FLASH, USB HDD
- User connections
- 128
- Interfaces
- 1×USB2.0, 1×USB3.0
- Serial port
- RS485
- Audio in
- 1
- Audio out
- 1
- Audio compression
- G.711A / G.711U / PCM
- Support
- Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
- Motion detect
- Yes
- Privacy masking
- Tak
- Network
- RJ-45(10/100/1000Mbps)
- Compatibility
- ONVIF
- Protocols
- HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
- Power supply
- 12V DC
- Power consumption (without HDD)
- max 12W
- Working environment
- -10°C~+55°C max 90% RH
- Casing
- 1U
- Dimensions mm (W×D×H)
- 375×289×53
- Weight (without HDD)
- 1.8 kg
- Ai - Built-in intelligent functions
- Yes
- Ai - Intelligent functions from recorder
- Perimeter protection (human/vehicle recognition), smart motion detection (human/vehicle recognition), face detection, face recognition
- Ai - Perimeter protection
- 4 channels analog HD
- Ai - Face detection
- 2 channel analog HD, face attributes (gender, age, glasses, expression, mask, beard), max 12 pictures for second
- Ai - Face recognition
- 2 kanały analog HD, do 10 baz danych twarzy, 10 tyś obrazów
- Ai - SMD - Smart Motion Detection
- 16 kanałów z rejestratora, 24 kanałów z kamer
- Ai - Smart search
- AcuPick 2 kanały 1080P z rejestratora
- 16-channel, 5-system recorder
- HDCVI/AHD/TVI/ANALOGUE/IP
- Supports 2 hard drives
- Supports 5Mpx analogue HD and 6Mpx IP cameras.
- HDMI 4K/VGA output
- Audio 1/1
- Built-in smart features
